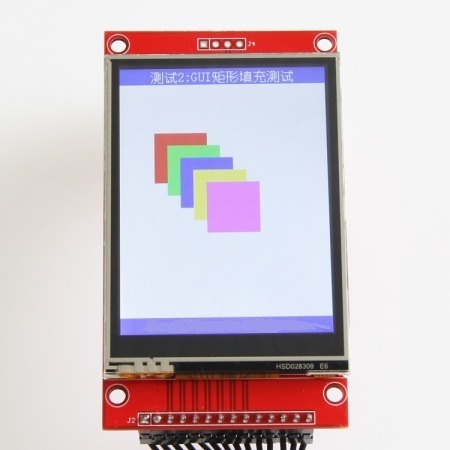

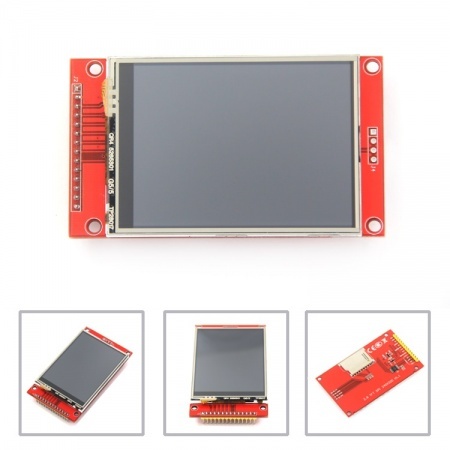

2.8inch SPI TFT LCD Display Module with ILI9341 driver

The lcd module hardware circuit includes three parts:a lcd display control circuit,a touch screen control circuit,and a backlight control circuit.
Description
2.8inch SPI TFT LCD Display Module with ILI9341 driver
1. INTRODUCTION
The 2.8inch lcd module uses a 4-wire SPI communication method with a driver IC of ILI9341 and a resolution of 240x320 and a touch function(optional).The module includes an lcd display,backlight control circuitry,and touch screen control circuitry.
2.Features
  • 2.8-inch color screen,support 65K color display,display rich colors
  • 320X240 resolution, optional touch function
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display
  • Easy to expand the experiment with SD card slot
  • Provide a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support
3 Product Summary
Name Parameter
Display Color RGB 65K color
SKU have touch screen: RPMSP2807
have no touch screen: RPMSP2806
Screen Size  2.8(inch)
Type TFT
Driver IC ILI9341
Resolution 320*240 (Pixel)
Module Interface 4-wire SPI interface
Active Area (AA area) 43.2x57.6(mm)
Module PCB Size 50.0x86.0(mm)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
VCC power voltage 3.3V~5V
Logic IO port voltage 3.3V(TTL)
Power Consumption TBD
Rough Weight(Package containing) No touch: 34(g) / With touch: 43(g)

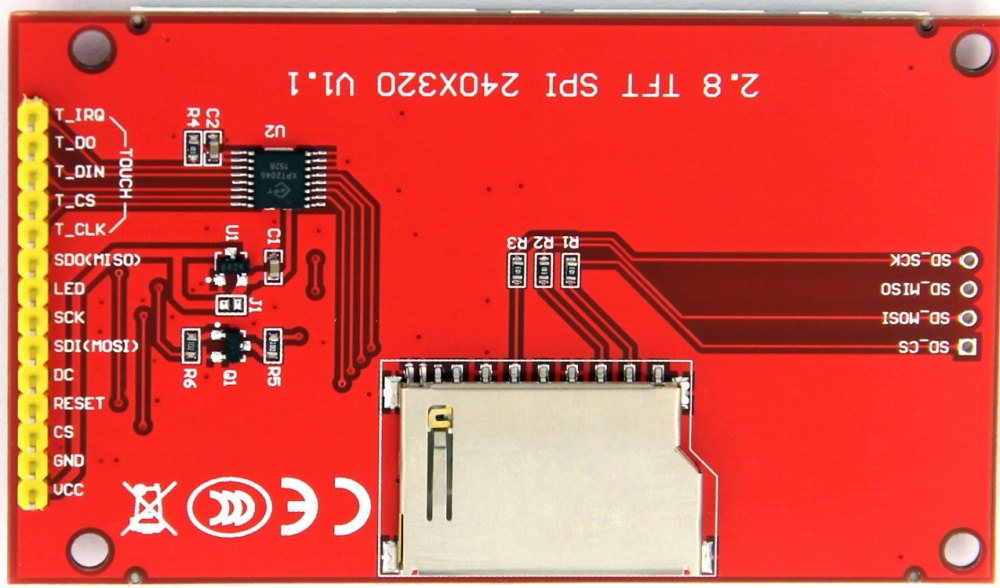

4 Interface Definition
