3.2 Inch SPI LCD Touch Display
3.2 inch 240×320 IPS TFT LCD Spi Serial Port ILI9341 LCD Module Optional Capacitive Touch Screen
Module NO: RPMSP3222
Size: 3.2″
Resolution: 240*320 Pixels
Display Mode: IPS
Brightness:350 Nits
Interface: 4-wire SPI interface
Display Color: RGB 65K color
Driver IC: ILI9341V
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 3.2inch color screen with 240×320 resolution of 65K colors and rich display colors
- The upgrade adopts IPS full view panel, with good visual angle
- On board level conversion circuit, compatible with 5V and 3.3V MCU
- Adopting a 4-wire SPI serial bus to save I/O pins
- Optional capacitive touch/no touch function for modules
- Module input supports 2.54 pin interface and FPC extension interface
- Equipped with micro TF card slot for easy storage expansion
- Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32)
- Provide low-level driver technical support, and update WIKI information online
- Multiple tests for module aging can meet military level standards, supporting long-term stable work
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 3.2" |
| Resolution | 240x320 |
| TFT Type | IPS |
| Interface Type | 4-wire SPI interface |
| LCD Pin Number | 14pin |
| Module PCB Size | NO Touch Screen:55.04(W)x90.5(H)x12.88(D) (Typ, mm) |
| Active Area | 48.60(W)x64.80(H) (mm) |
| Brightness | 350 Nits (Optional) |
| Touch Screen | Optional(Capacitive Touch Screen) |
| Driver IC | ILI9341V |
| Operating Voltage | 5 V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

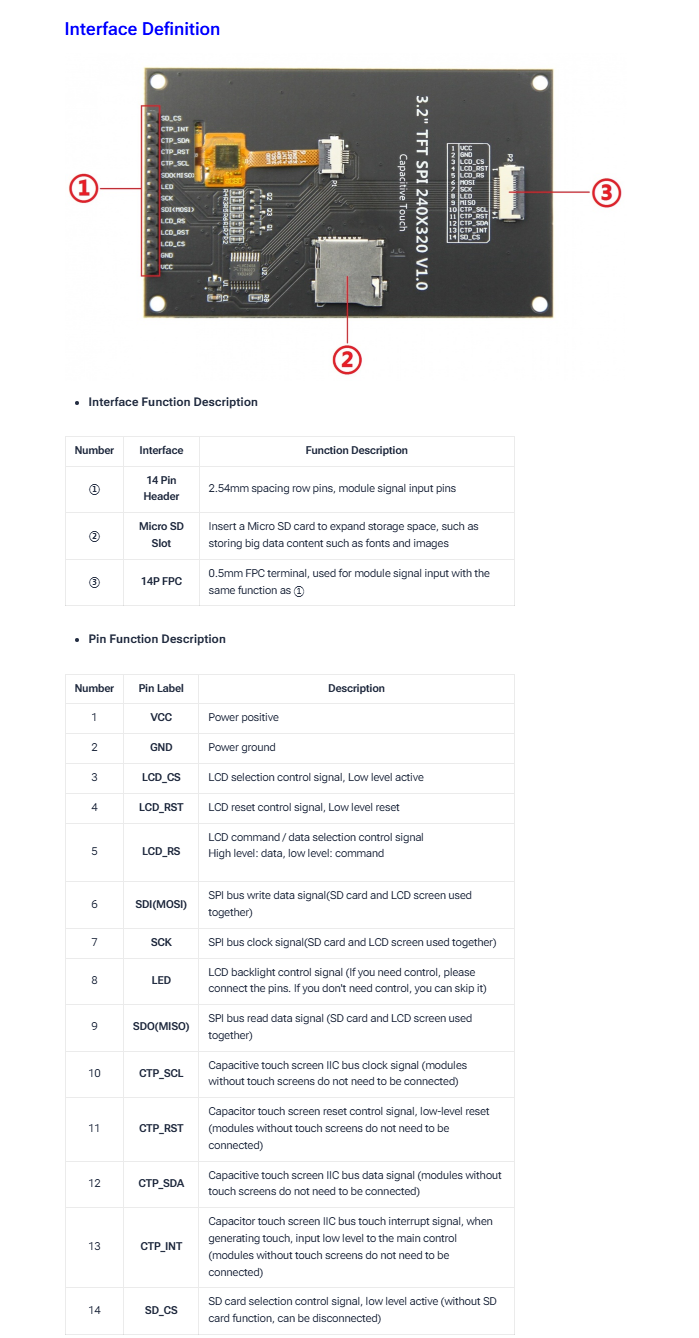

Pin Definition

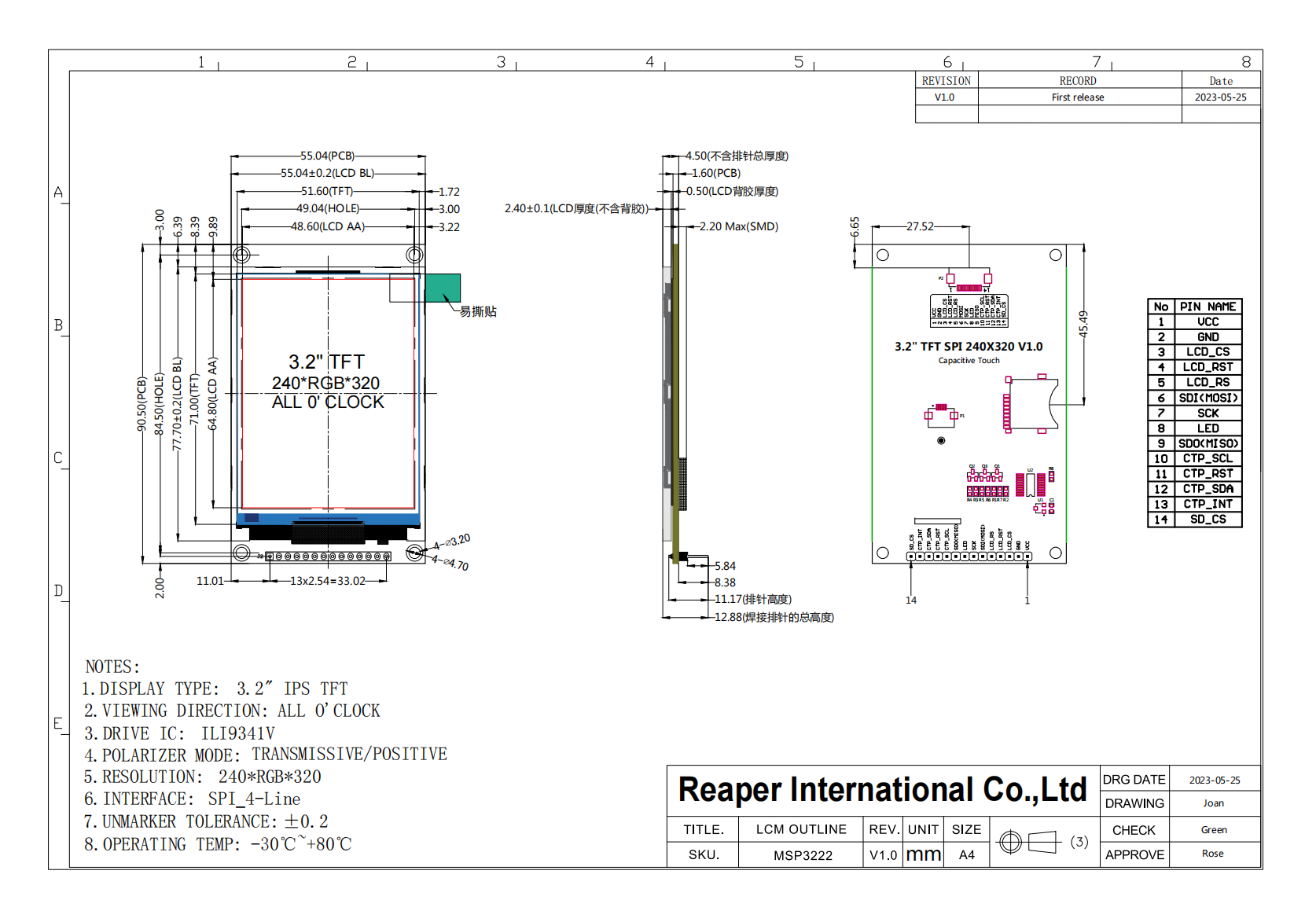

Product Structure
Key Features
The Reaper 3.2″ SPI LCD Display (Model: RPMSP3222) is a Adopting a 4-wire SPI serial bus to save I/O pins,Module input supports 2.54 pin interface and FPC extension interface,Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32),Provide low-level driver technical support..
·Size & Quality
A compact 3.2-inch screen with TFT transmissive technology, providing a high-quality display area of 48.60(W)x64.80(H) mm.
·Easy to operate
Provide a rich sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
