7.0 Inch RGB Display
7.0 Inch TFT LCD Module 24bit RGB Parallel Port Capacitive Touch Display Support Esp32 Stm32f407 and Other Core Boards
Module NO: RPMRG7101
Size: 7.0″
Resolution: 800*480/1024*600 Pixels
Display Mode: IPS
Brightness: 330 Nits
Interface: 24Bit RGB parallel interface
Display Color: RGB888 16.7M (compatible with rgb5665k) color
Touch IC: FT5426(Capacitive touch)
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 7.0-inch color screen, support 24BIT RGB 16.7M color display, display rich colors
- Support 800×480 and 1024×600 resolution screen switching, the display effect is very clear
- Support 24 bit RGB parallel bus transmission
- Compatible with RGB interface connection of punctual atomic development board and wildfire development board
- Use capacitive touch screen to support 5 touch points
- Provides a rich sample program for STM32 platforms
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 7.0" |
| Resolution | 800x480/1024x600 |
| TFT Type | IPS |
| Interface Type | 24Bit RGB parallel interface |
| LCD Pin Number | 40pin |
| Module PCB Size | 164.90x124.27 (Typ, mm) |
| Active Area | 800x480: 153.84x85.63(mm) 1024x600: 154.21x85.92(mm) |
| Brightness | 330 Nits (Optional) |
| Touch Screen | (Optional)Capacitive Touch Screen |
| Touch IC | FT5426(Capacitive touch) |
| Operating Voltage | 5V/3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

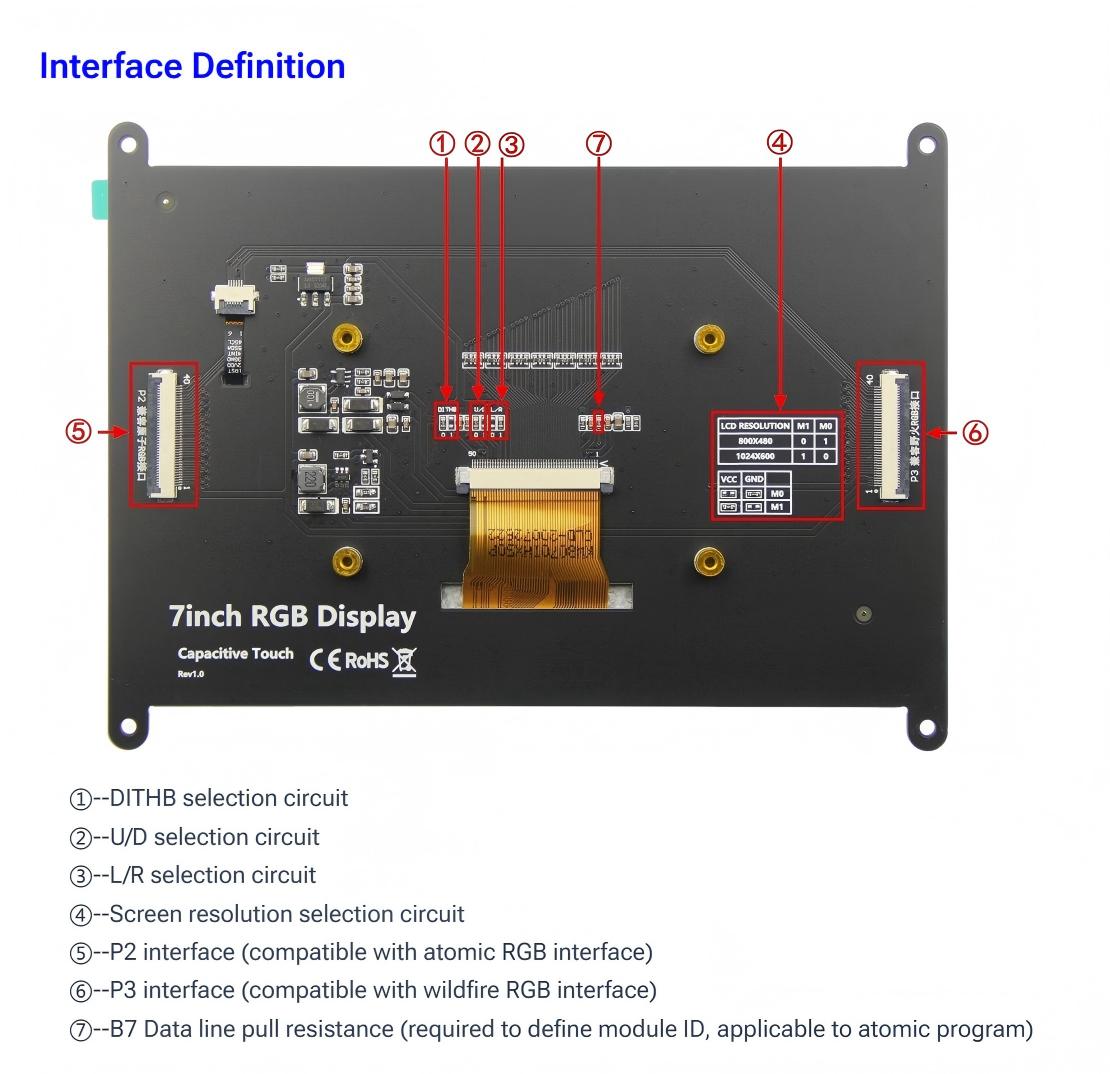

Pin Definition
Product Structure
Key Features
The Reaper 7.0″ RGB LCD Display (Model: RPMRG7101) is a Compatible with RGB interface connection of punctual atomic development board and wildfire development board,Provides a rich sample program for STM32 platforms,Provide underlying driver technical support.
·Size & Quality
A compact 7.0-inch screen with TFT transmissive technology, providing a high-quality display area of 153.84×85.63 or 154.21×85.92 mm.
·Easy to operate
Provides a rich sample program ,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
