Character 40*4 LCD Module
Yellow Green Blue 40*4 COB STN LCD Module Monochrome Character LCD Display
Module NO: RP4004A
Character: 40*4
Color: Yellow/Green/Blue
LCD Type: STN
View Angle: 6 O’clock
Interface: 18pin
Package: COB
Driver IC: KS0066 or EQV
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- Reaper offers a wide range of standard Character LCD modules for customers’ application. Our LCD character displays are available from 8×2, 12×2, 16×1, 16×2, 16×4, 20×2, 20×4, 24×2 through to 40×4 formats with 5×8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.
| ITEM | STANDARD VALUES |
|---|---|
| Module No | RP4004A |
| Character | 40*4 |
| LCD Type | STN |
| Color | Yellow/Green/Blue |
| Pin Number | 18 pin |
| Module PCB Size | 190.00x54.00x13.50 (Typ, mm) |
| Viewing Area | 147.00x29.50 (Typ, mm) |
| Character Size | 2.78x4.97(WxH)(Typ, mm) |
| View Angle | 6 O’clock |
| Driver IC | KS0066 or EQV |
| Operating Voltage | 3.3V or 5V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |

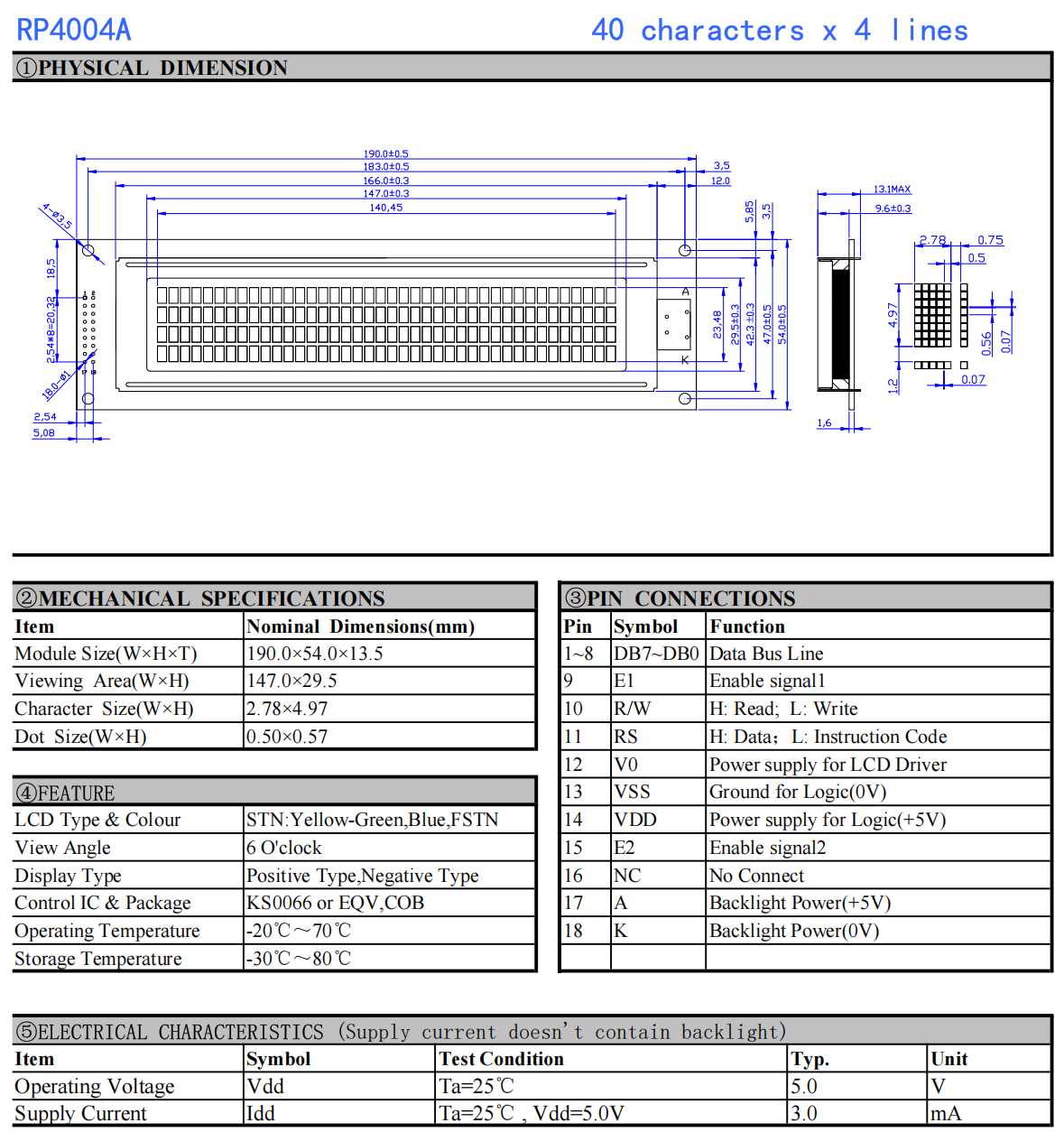

Product Structure
Key Features
To meet the demands of customer applications, these character LCD displays are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o’clock. Reaper offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character module and LCM Modules can be used on industrial and consumer’s applications including entrance guard’s equipment, telegram, medical device, car and home audio, white goods, game machine, toys and etc.
·Size & Quality
Focus LCDs’ standard character variations range from 8×1 to 40×4 characters and have several different models for each variation. .
·High Brightness
With 1000 nits brightness, the display is clearly visible even in well-lit environments, making it ideal for outdoor and industrial use.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Low Power Consumption
Character LCDs typically consume less power than displays such as TFTs. Focus LCDs’ standard character LCDs come in 5V or 3.3V. The latter voltage is low enough to be powered by two double A batteries – perfect for low power or mobile devices.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
