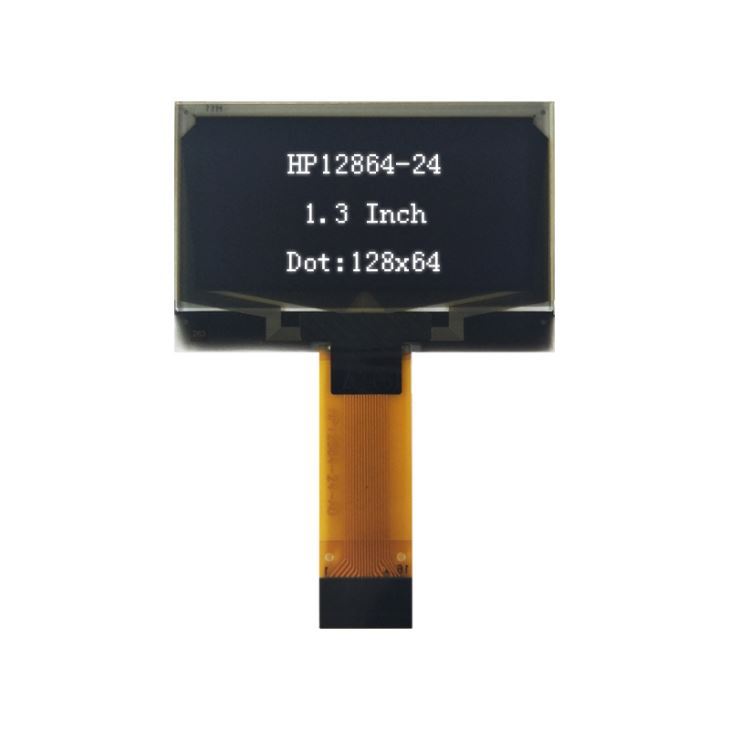

1.3inch OLED Display 128X64 White OLED Screen

Item No.: HP12864-24-KHWG16P130-A
OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa
1.3inch OLED Display 128X64 White OLED Screen
Model HP12864-24-KHWG16P130-A
Size 1.3 inch
Dots 128x64
Color White

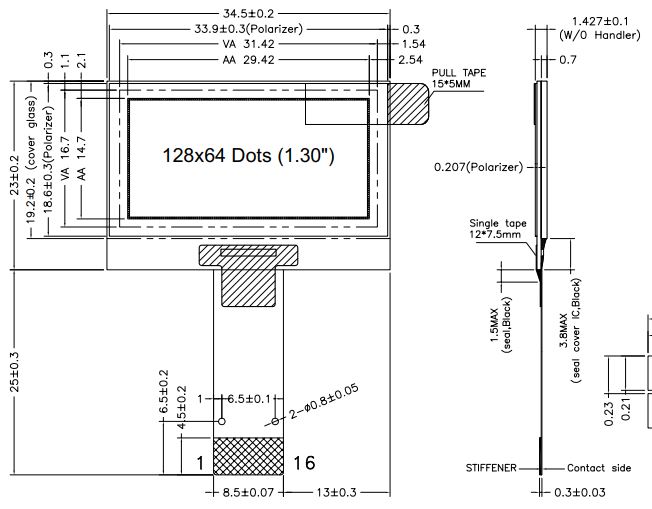

Outline Demision 34.5 x 23 x 1.427 mm
Viewing Area 31.42 x 16.7 mm
Active Area 29.42 x 14.7 mm
Drive IC SH1106G

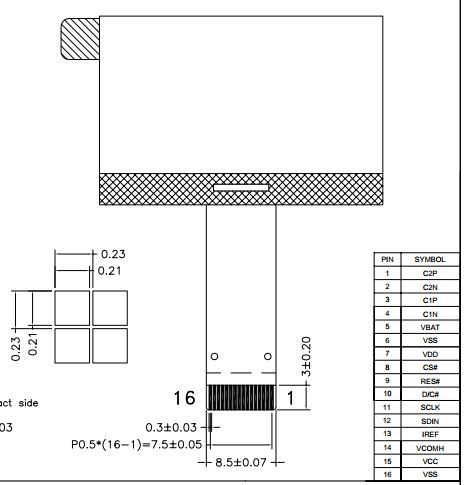

Pin number 16
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
