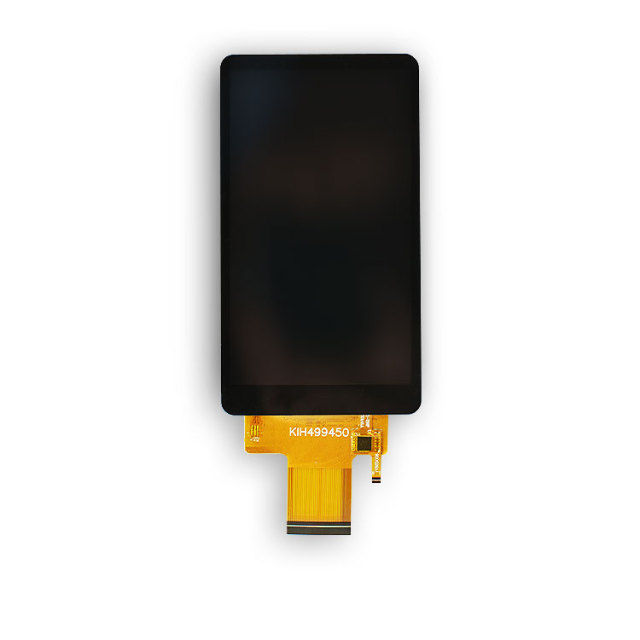

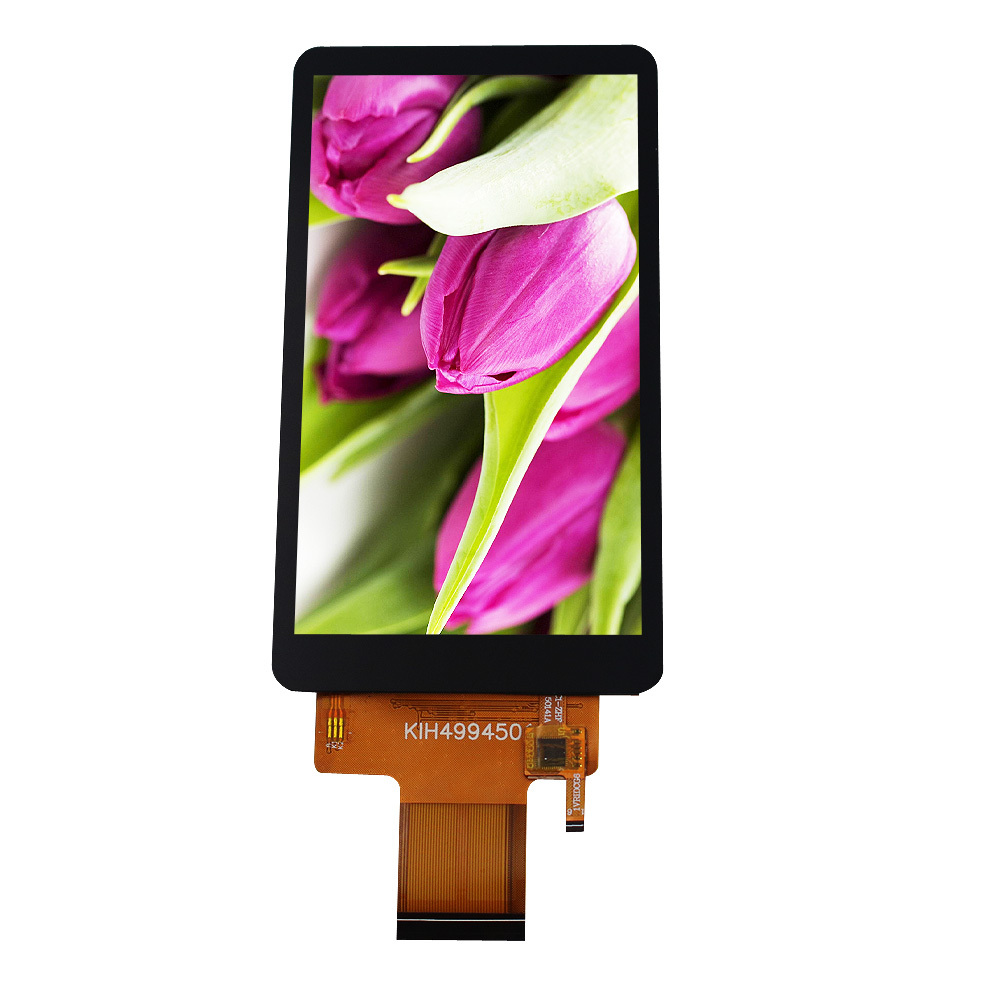

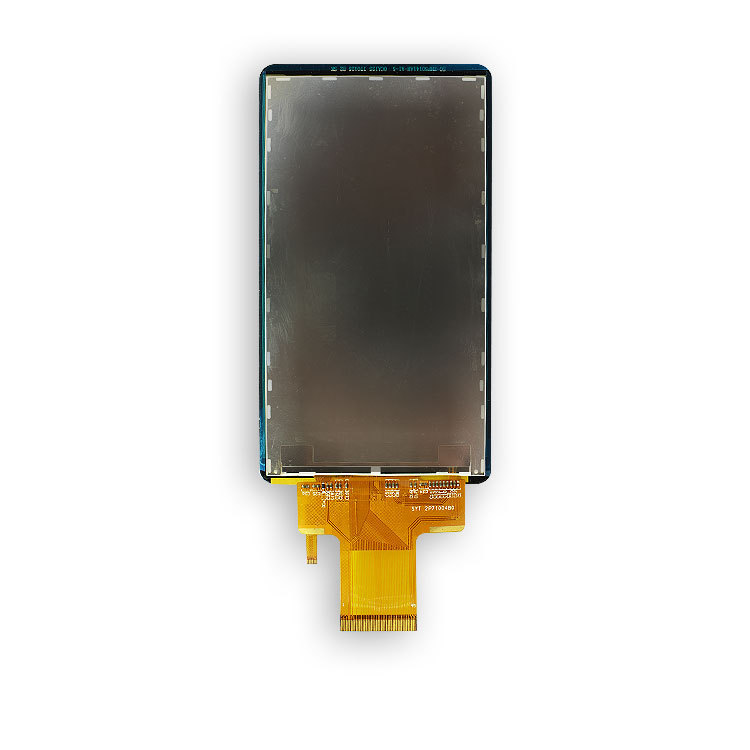

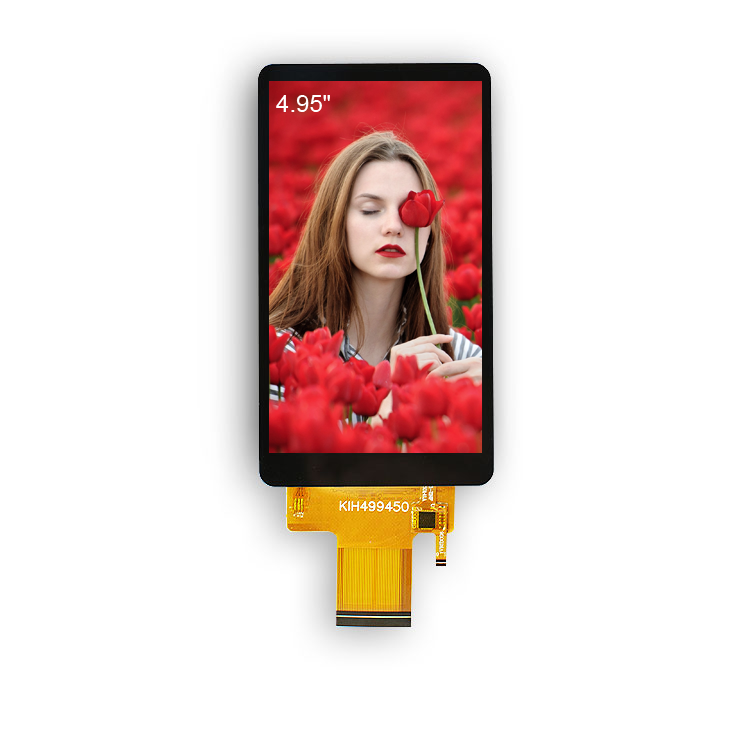

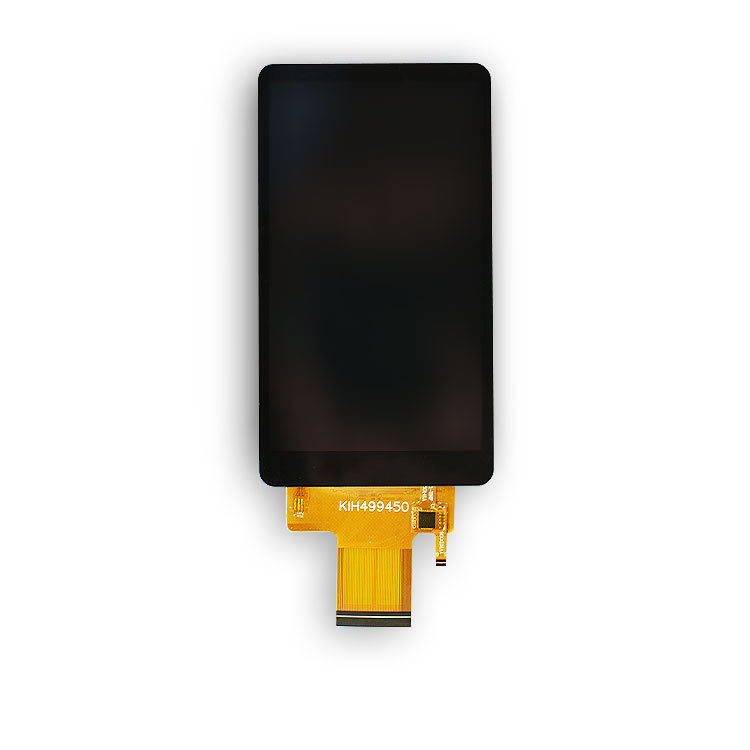

Customzied 4.99inch TFT LCD Screen module with capacitive touch screen
1. INTRODUCTION
* It is a IPS LCD Display bonding with Capacitive Touch Screen.
* Backlight with different brightness is customized according to your request.
* It is Standard IPS LCD Module and Capacitive Touch Screen.
* It can be customized for LCD and Touch screen.
* Experienced Team for Your Custom Solution.
* RoHS compliant
2.Features
| Model: |
K499H4501 |
| Display Type: |
TFT IPS |
| Resolution |
480*3(RGB)*854 |
| Start Time |
1.6±0.5 Sec |
| Interface |
RGB 45pin |
| Viewing Angle(U/D/R/L) |
(80/80/80/80) |

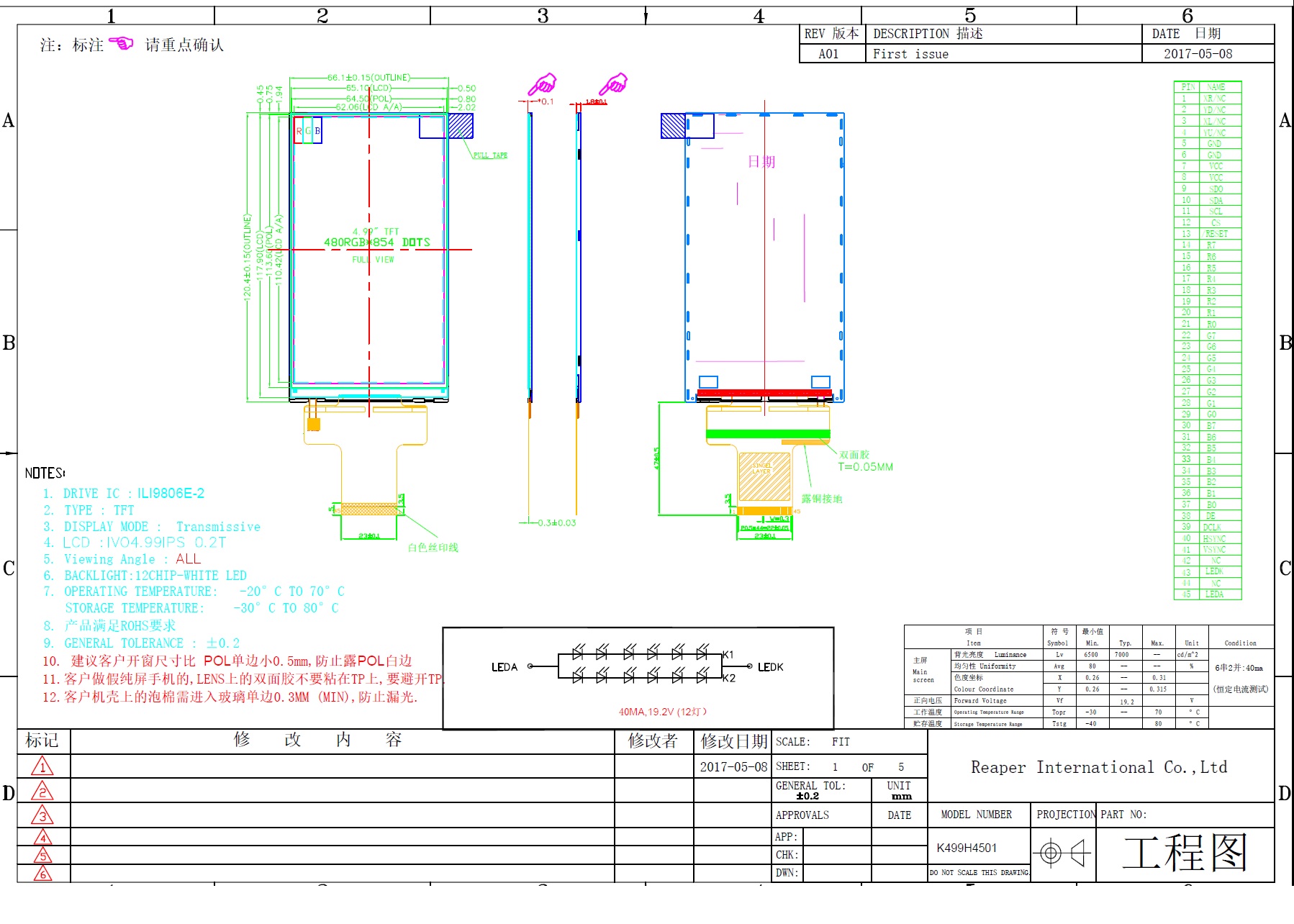

| Panel Outline Dimensions |
66.1(W)*120.0(H)*1.8(T)mm |
| Operating Temperature: |
-20 ~ +70ºC |
| Storage Temperature: |
-30 ~ +80ºC |
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
