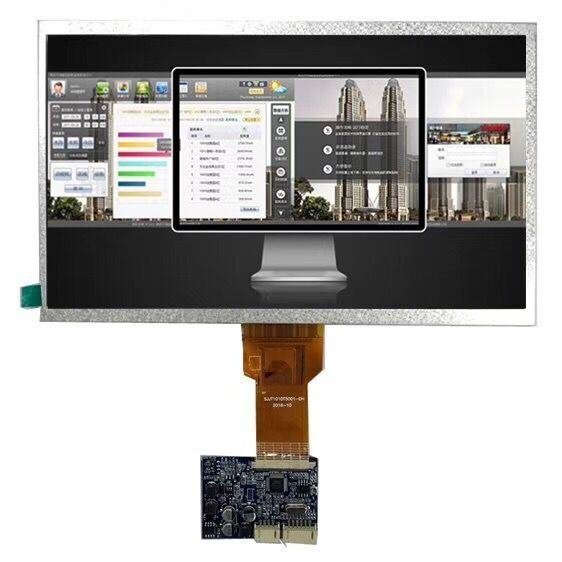

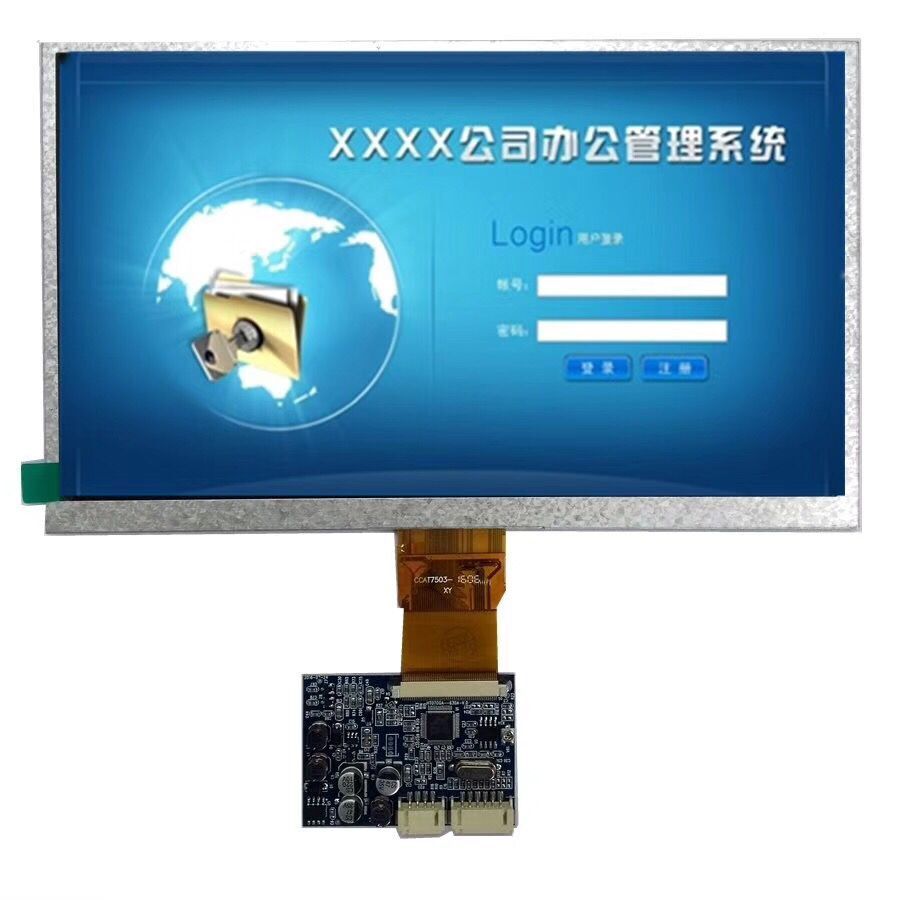

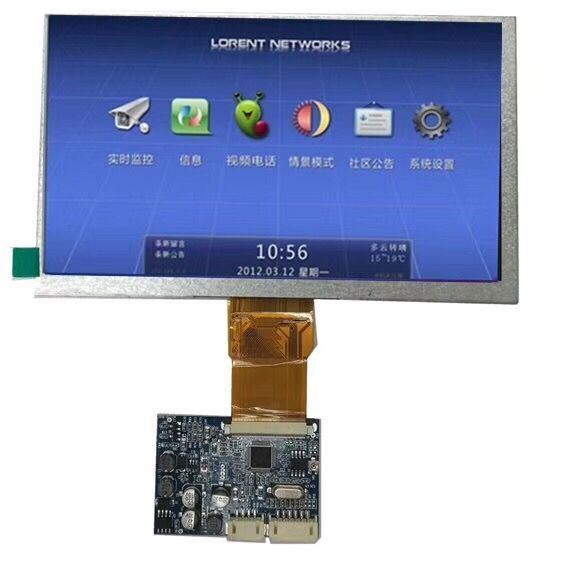

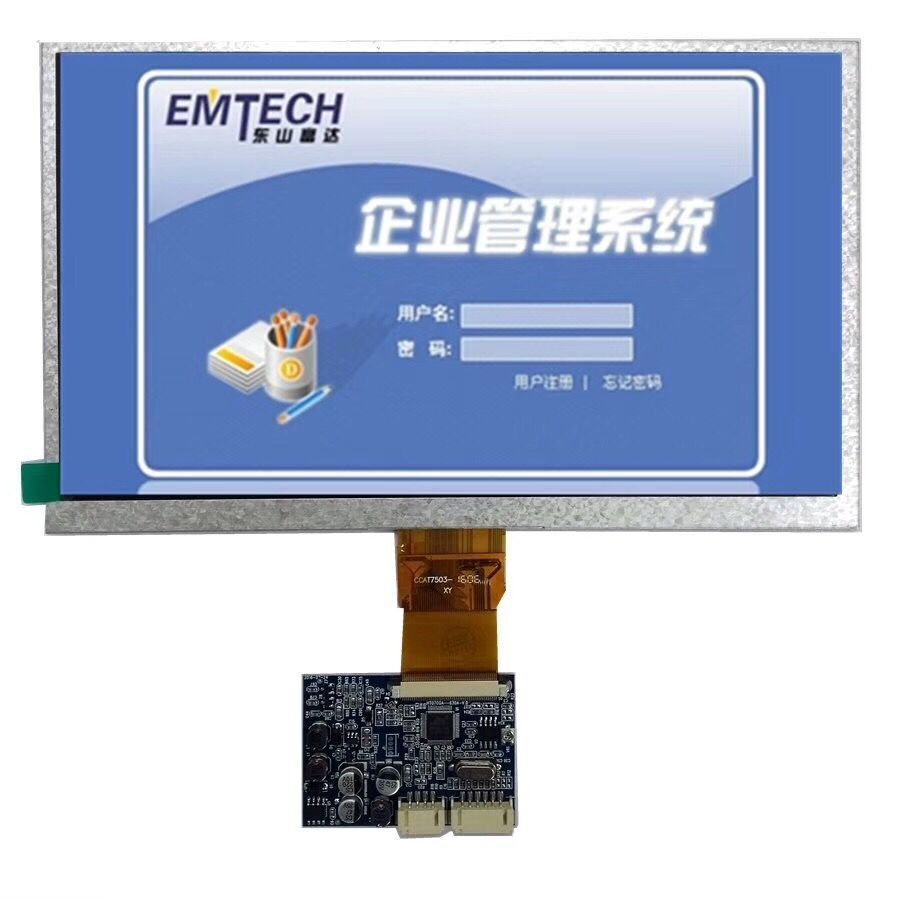

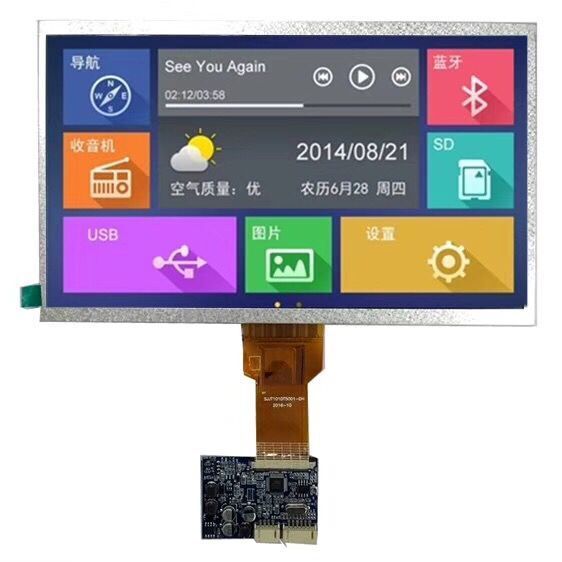

7inch Cm/HS TFT LCD Screen with Controller Board Apply for Home Appliance video Door Phone

RP070MA-V0 TFT module is combined with 7inch lcd display
and controller board; support both PAL system and NTSC, which
can be automatically converted. The whole module use high light white LED as back-light,which has low consumption and disturbances.
Description
7inch Cm/HS TFT LCD Screen with Controller Board Apply for Home Appliance video Door Phone

1. INTRODUCTION
RP070MA module is combined with RP01PA PCB board
and HS 7" digital lcd panel, support both PAL system and NTSC , which can be
automatically converted. The whole module use high light white LED as backlight,which has
low consumption and disturbances. This TFT module can be used for visual doorbell, video
telephony, automotive displays, portable DVD, instruments, meters and measuring equipment
and etc.

2.Features
Model: RP070MA-V0
Application Video Door Phone
Resolution 800*3(RGB)*480
Start Time 1.6±0.5 Sec
Signal Interface  PAL/NTSC
Signal Amplitude Min 0.5Vp-p/Standard: 1.0Vp-p  Max: 2.0Vp-p
Adjust Type  VR and KEY
Working Voltage Min:DC 9V/Standard: DC12V  Max: DC18V
Working Current DC 260mA±20mA (DC12V)
Power Consumption 2.2W(TYP)
Viewing Angle(U/D/R/L) (50/70/70/70)
Panel Outline Dimensions 165.0(W)*100.0(H)*3.5(T)mm
ESD Level Contact +/-6KV,Air  +/-8KV
Operating Temperature: -20 ~ +55ºC
Storage Temperature: -30 ~ +65ºC



Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
