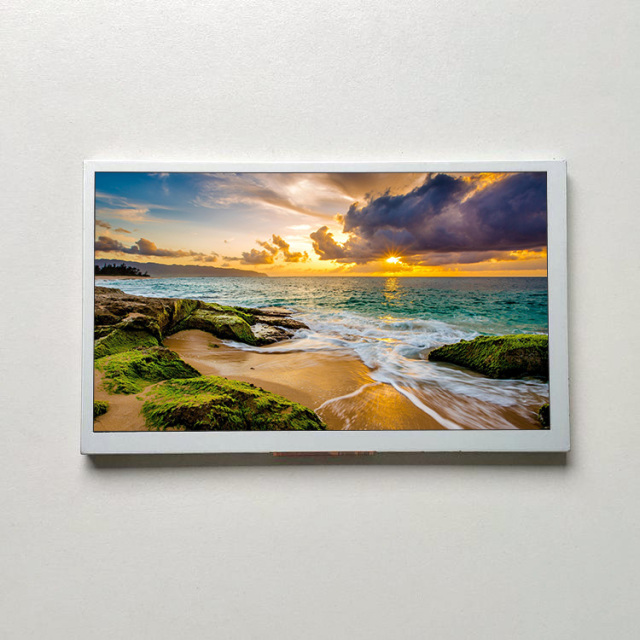

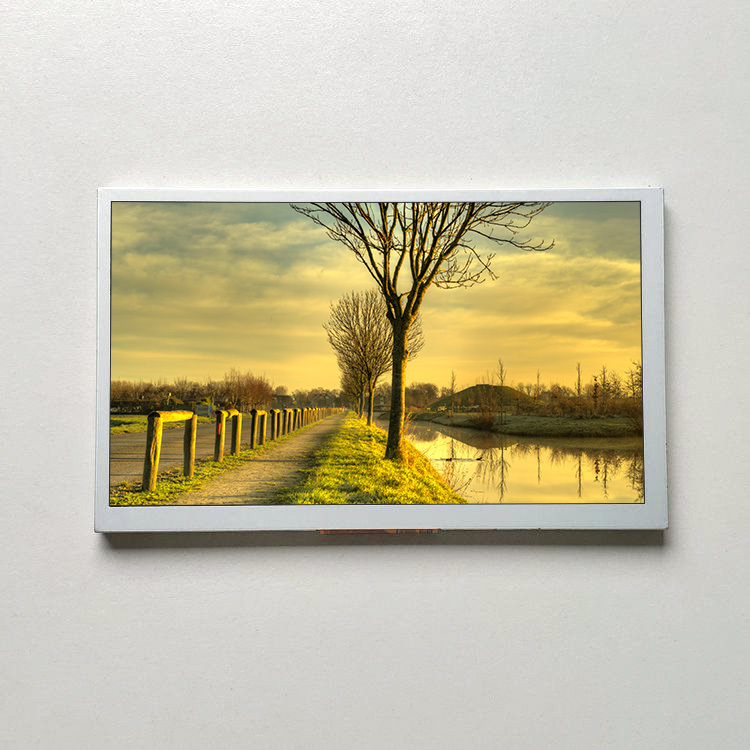

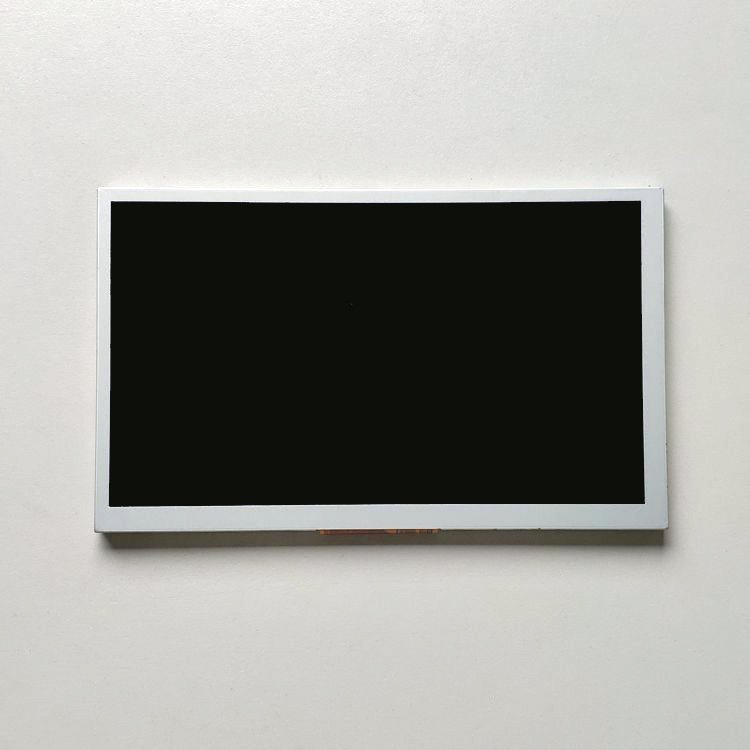

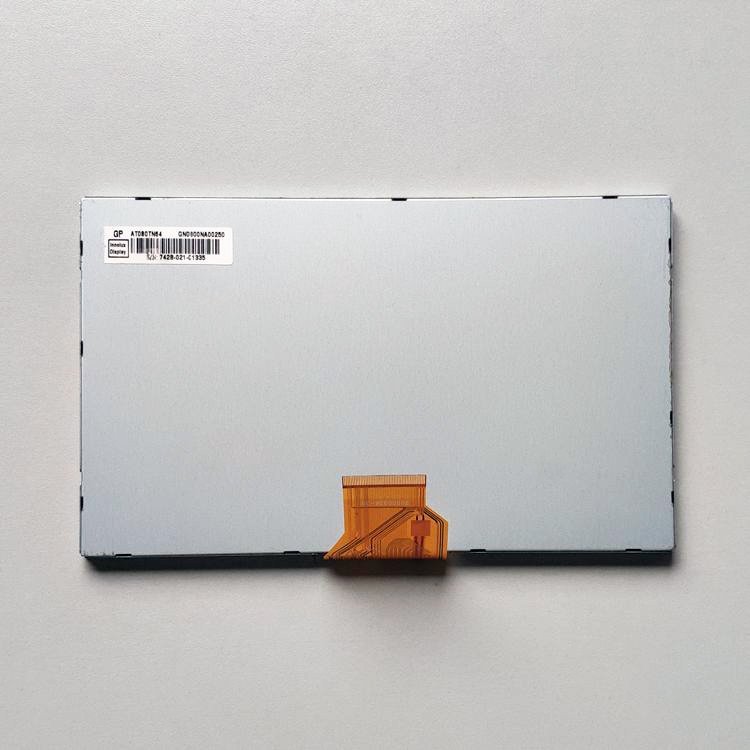

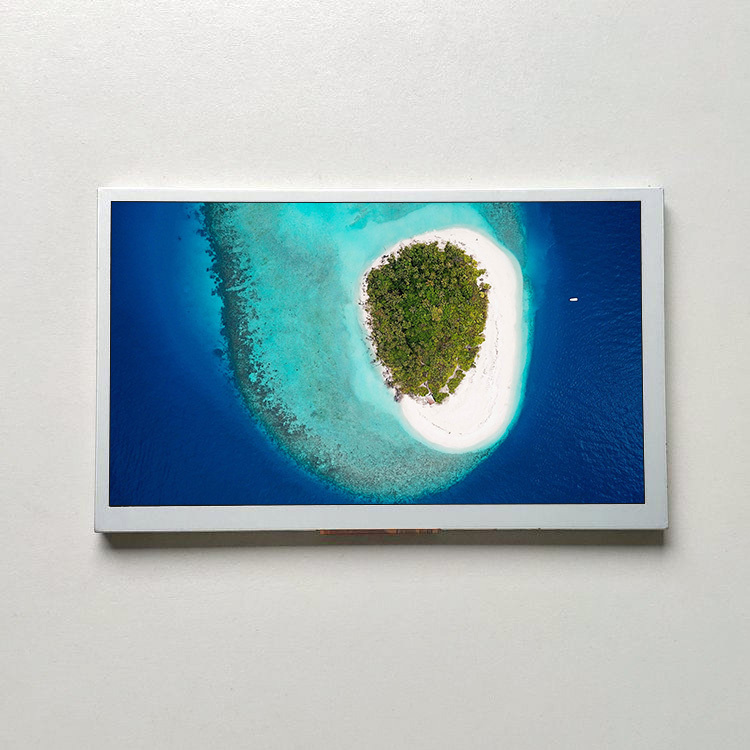

8inch LCD Display Screen Original Innolux At080tn64 TFT LCD Module for Car Application Consumer Electronics, Etc
| Module number |
AT080TN64 |
| Resolution |
800 × (RGB) × 480 |
| Dot pitch |
0.0736(W) X 0.2070(H) mm |
| Active Area |
176.64(W) X 99.36(H) mm |
| View angle |
R/L/U/D 70/70/50/70(Deg) |
| Pixel Arrangement |
RGB-stripe |
| Surface Treatment |
AG |
| Electrical Interface |
Digital |
| Brightness |
450(cd/m2) |
| Contrast ratio |
500:1 |
| Outline dimension |
192.8(W) X 116.9(H) X 6.4(D) mm |
| Backlight |
LED |
| Response time |
25(ms) |
| Display mode |
TN, Normally White, Transmissive |
| Operate temperature |
-30-85(°C) |
| Storage temperature |
-30-85(°C) |
| Display Colors |
262k/16.2M |
| Power Supply Voltage |
3.3v(Typ.) |
| Backlight lifetime |
20k hrs(Min.) |
| Package |
Innolux original package; 30pcs/carton; Carton size: 530x355x255 mm
|
|
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology
