Character LCD Display

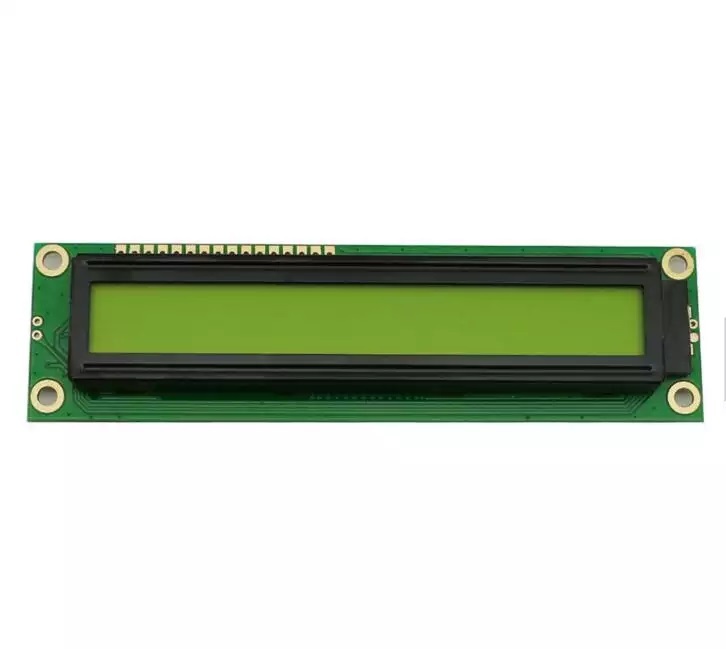

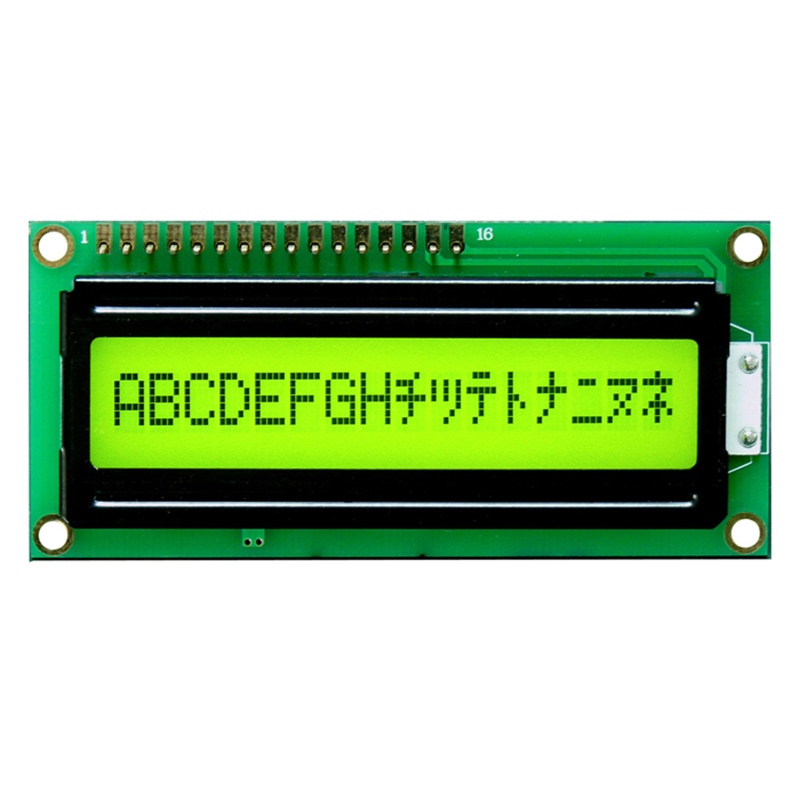

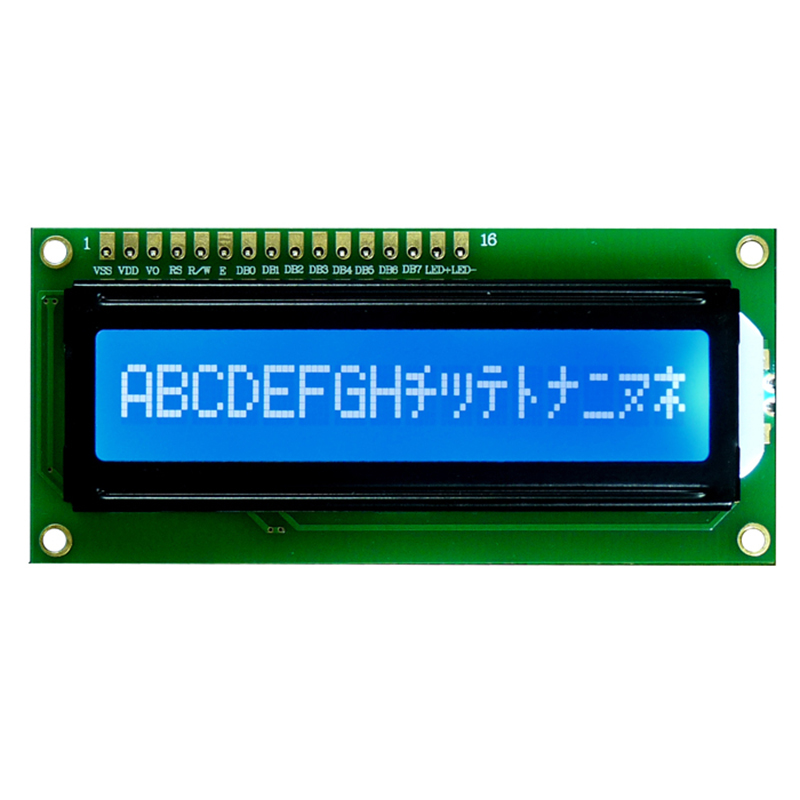

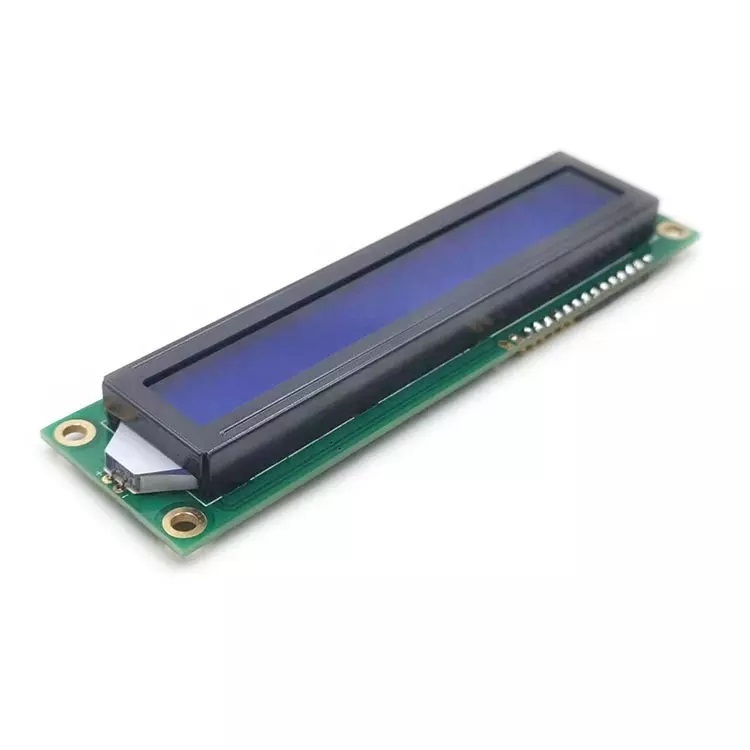

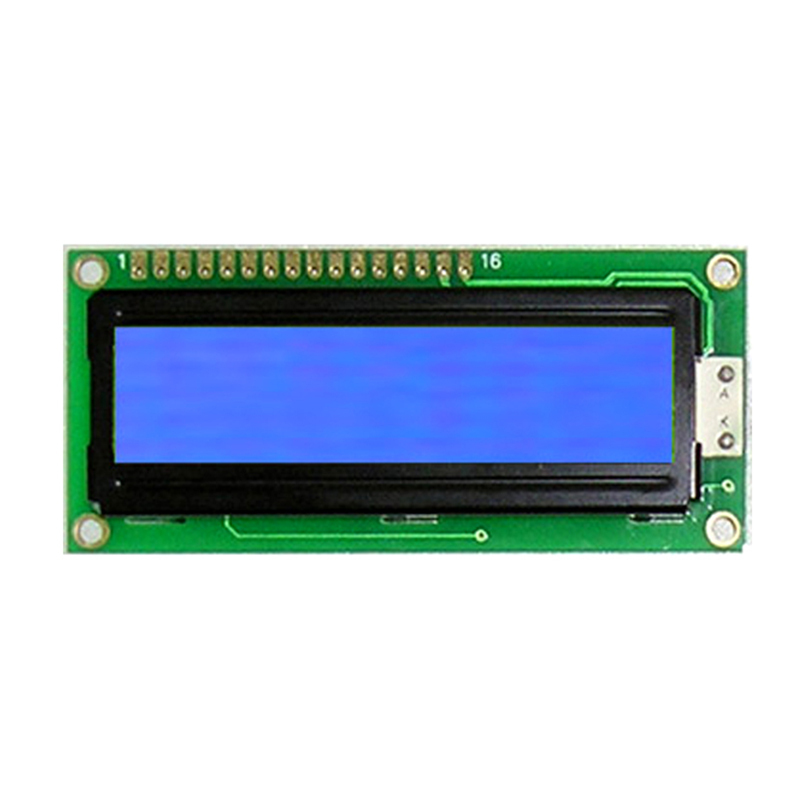

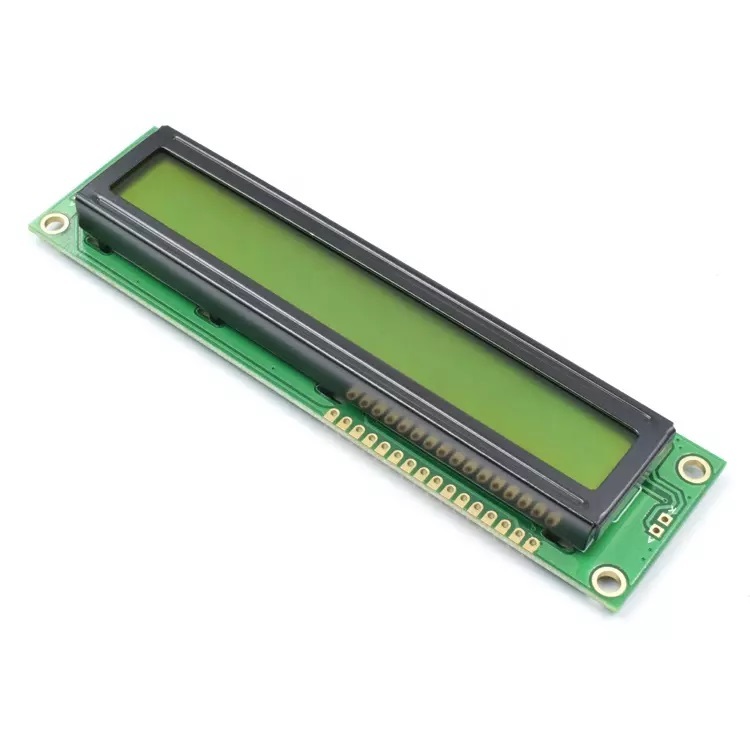

Character LCD Stn Blue 5V 16X1 COB Character LCD Display

Item No.: RP1601A
Reaper LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and
Description
 Character LCD Stn Blue 5V 16X1 COB Character LCD Display
Model: RP1601A
Dots: 16 x 1
LCM Type COB
Module Size 80 x 36 x 12mm
Viewing Area 65 x 16 mm
Character Size 3.21 x 5.96 mm
Dot Size(W*Hmm) 0.61 x 0.71 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type Positive or Negative
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
