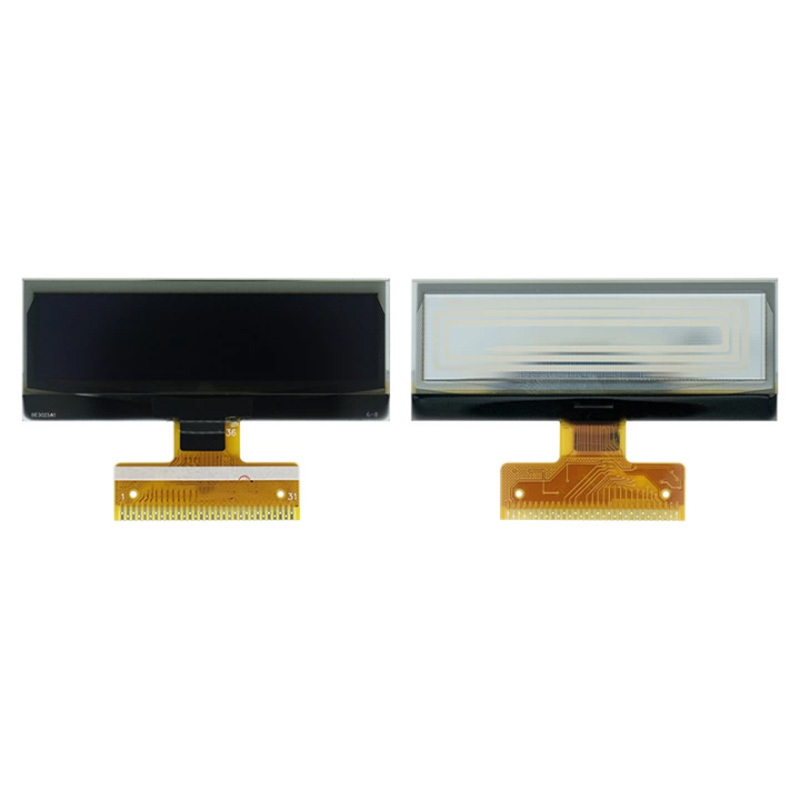

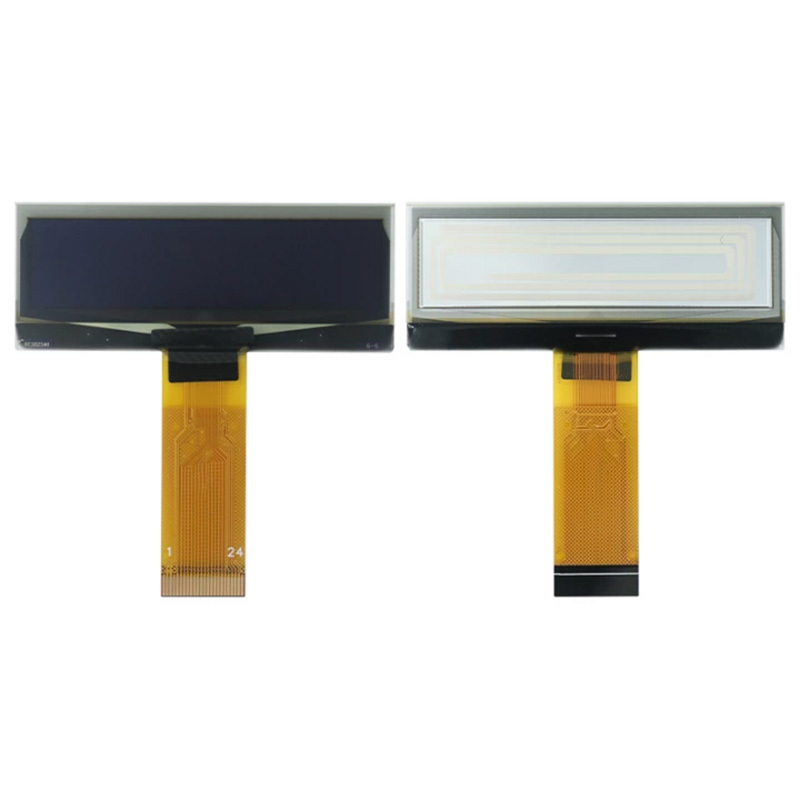

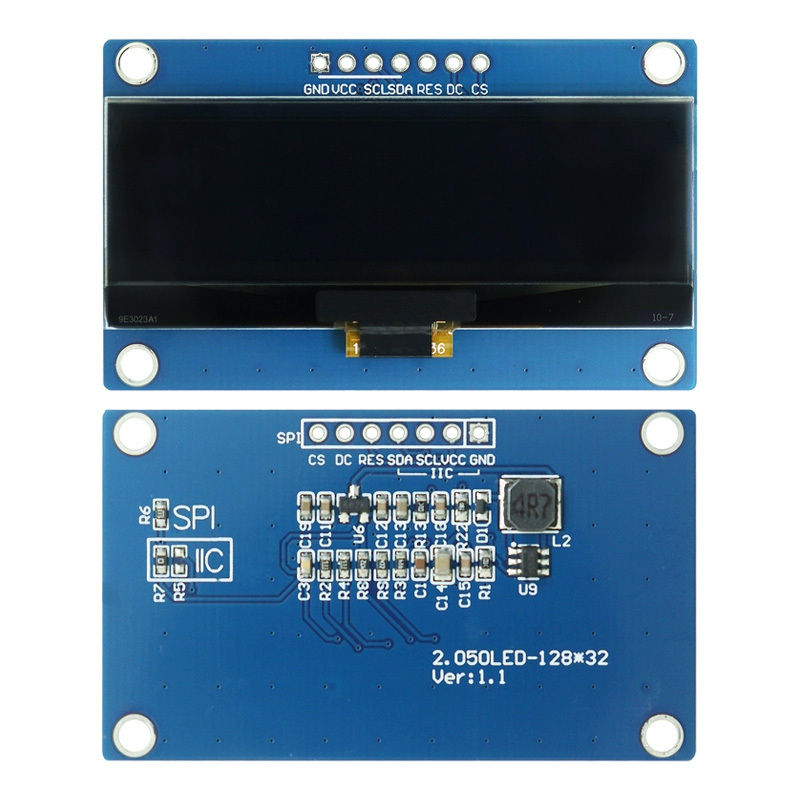

Monochrome OLED Display 2.05 Inch 128*32 Resolution I2c/Spi Interface SSD1309 Optional Board OLED Module

Name: Monochrome OLED Display 2.05 Inch 128*32 Resolution I2c/Spi Interface SSD1309 Optional Board OLED Module
Brand: reaperlcd
SKU: RP205JY02HJ-V01
Availability: InStock
Rating: 5 (1 reviews)

No.RP205JY02HJ-V01

High resolution: 128x32 (have the same resolution as 12832, high PPI);Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor);Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

GET A QUOTE

Description

Monochrome OLED Display 2.05 Inch 128*32 Resolution I2c/Spi Interface SSD1309 Optional Board OLED Module

Model:	RP205JY02HJ-V01
Size	2.05 inch
Dots	128x32
Color	White

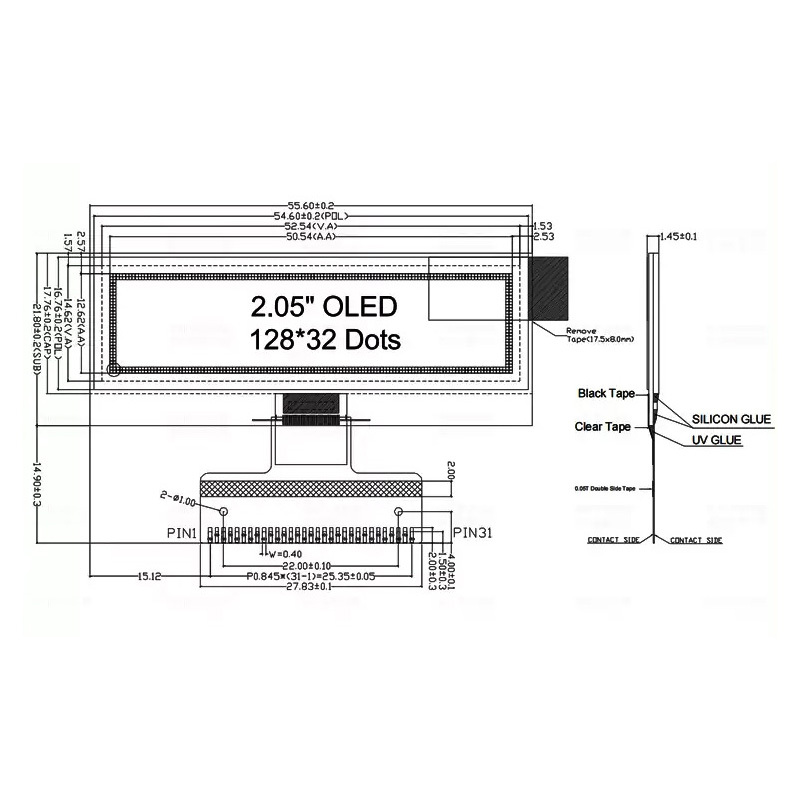

Outline Demision	55.60 x 21.80 x 1.45 mm
Viewing Area	52.54 x 14.62 mm
Active Area	50.54 x 12.62 mm
Drive IC	SSD1309
Interface	IIC/SPI
Pin number	7/24/31
Operating Temperature:	-40 ~ +70ºC
Storage Temperature:	-40 ~ +85ºC
