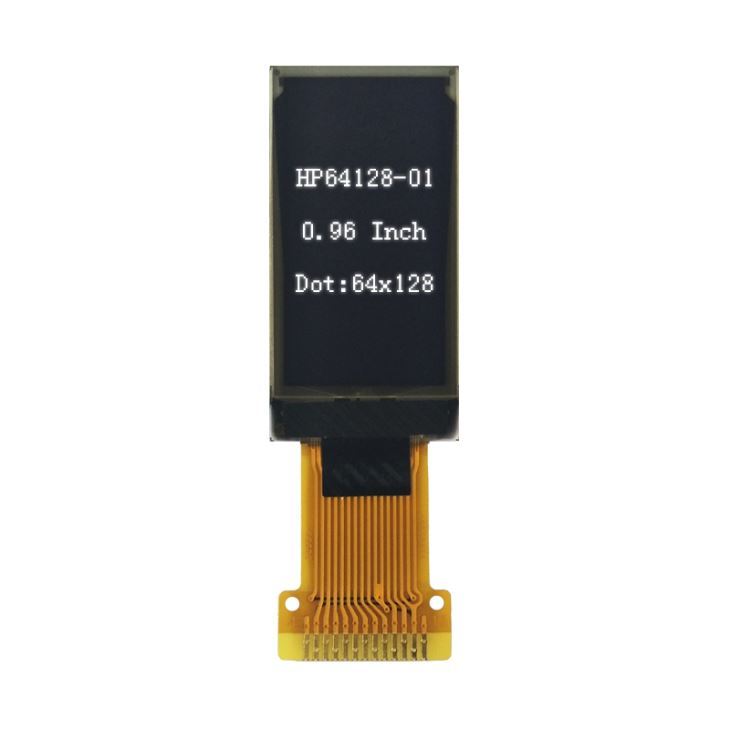

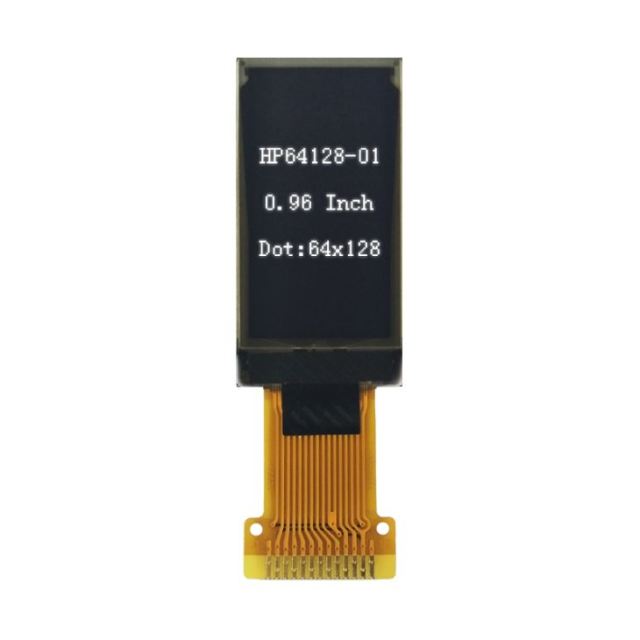

OLED Screen 0.96inch 64X128 Monochrome OLED Display

Item No.: HP64128-01-THWG13P096-A
OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa
OLED Screen 0.96inch 64X128 Monochrome OLED Display
Model HP64128-01-THWG13P096-A
Size 0.96 inch
Dots 64x128
Color White

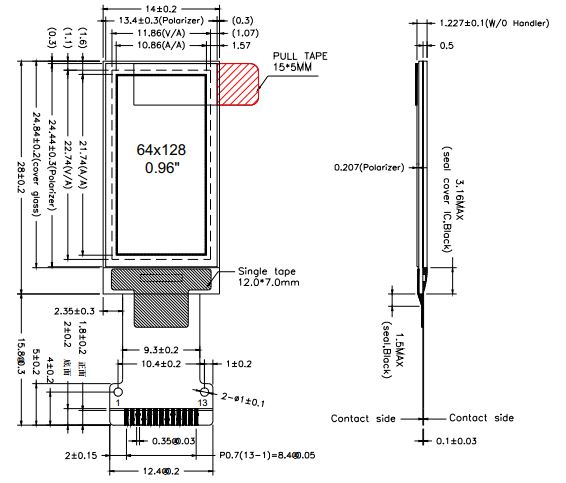

Outline Demision 14 x 28 x 1.227 mm
Viewing Area 11.86 x 22.74 mm
Active Area 10.86 x 21.74 mm
Drive IC SH1107
Interface 4-wire serial interface,I2C

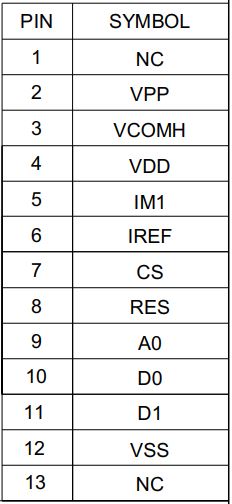

Pin number 13PIN
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
