TFT LCD Display

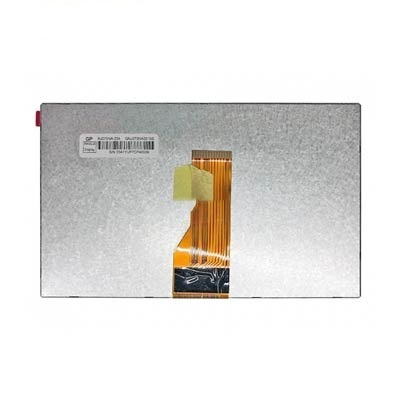

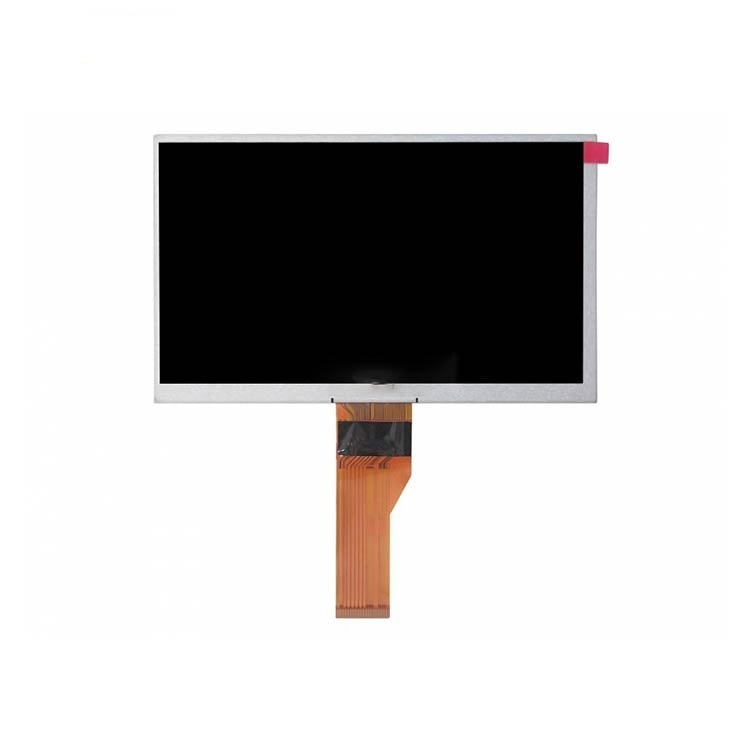

Original Innolux 7 Inch 1024*600 Wsvga TFT LCD Display Nj070na-23A 500nits with Touch Screen and Controller Board.

Item No.: Nj070na-23A
TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.
Description
Original Innolux 7 Inch 1024*600 Wsvga TFT LCD Display Nj070na-23A 500nits with Touch Screen and Controller Board.
Manufacturer Innolux
Model Name NJ070NA-23A
Screen Size 7.0 inch
Pixel Number 1024(RGB)×600 , WSVGA
Active Area(mm) 152.2144 x 85.92 (W×H)
Outline(mm) 164.9 x 100 x 4.8 (W×H×D)
Pixel Pitch(mm) 0.1506 x 0.1432 (W×H)
Treatment Hard Coating
Luminance 500 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle R/L/U/D 80/80/60/70 (CR≥10)
Response 10/15 (Typ.)(Tr/Td) ms
Display Mode TN , Normally white , Transmissive
Color Depth 262K/16.2M
Backlight WLED , 20K hours , without Driver
Net Weight 135.0g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 40 pins , FPC
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package Innolux original package;
50 pcs/box;
size : 535(L)mm x 370(W)mm x 265(H)mm
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
