Character LCD Display

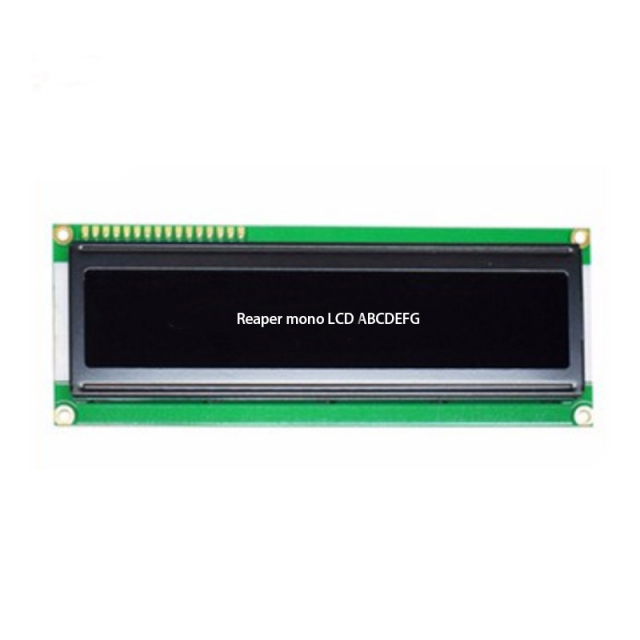

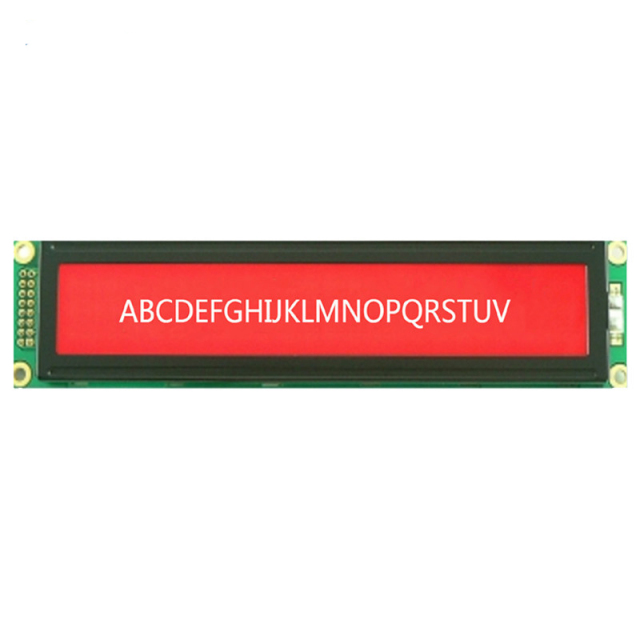

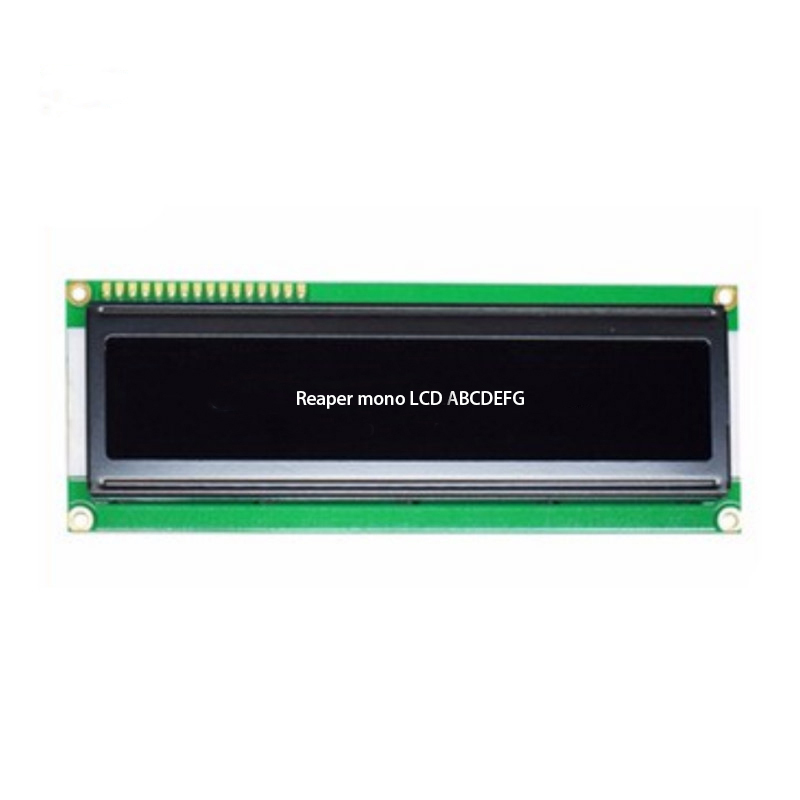

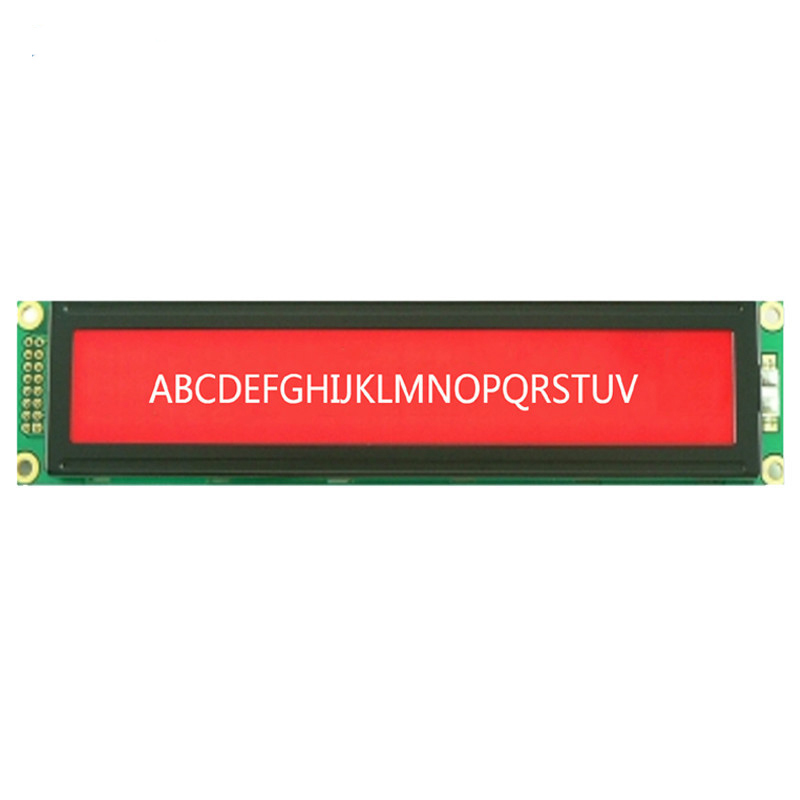

STN lcd 20x1 Character negative lcd screen COB LCM

Item No.: RPG2001A
Reaper LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and
Description
 STN lcd 20x1 Character negative lcd screen COB LCM
Model: RPG2001A
Dots: 20 x 1
LCM Type COB
Module Size 146 x 33 x 14mm
Viewing Area 123 x 13 mm
Character Size 6.00 x 9.75 mm
Dot Size(W*Hmm) 4.84 x 9.22 mm
Controller SPLC780D or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type TRANSMISSIVE
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
