Character LCD Display

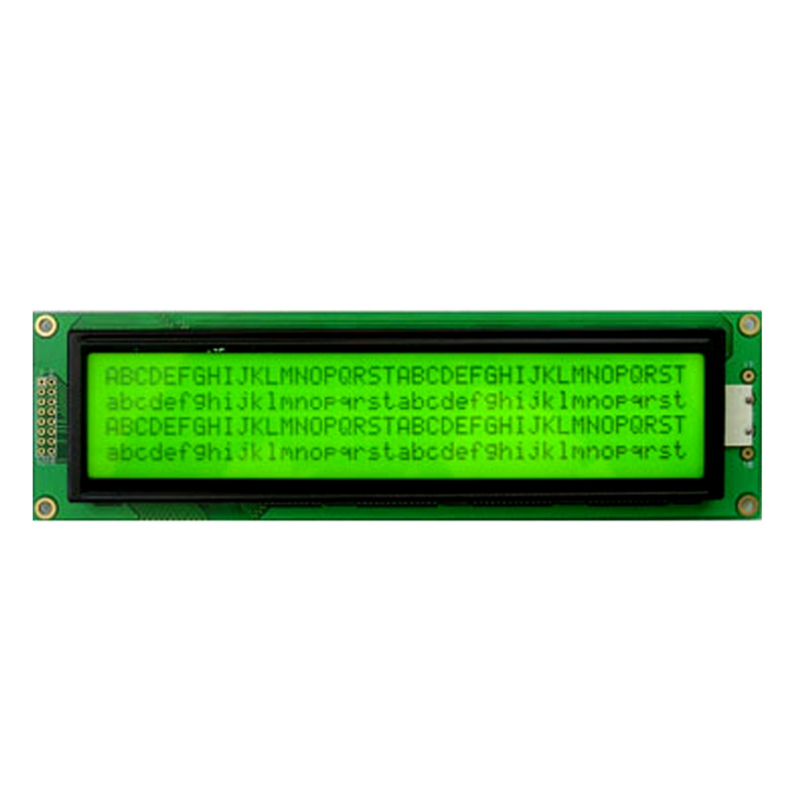

STN Type Display LCD 4004 40x4 Character LCD Module

Item No.: RP4004A
Reaper LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and
Description

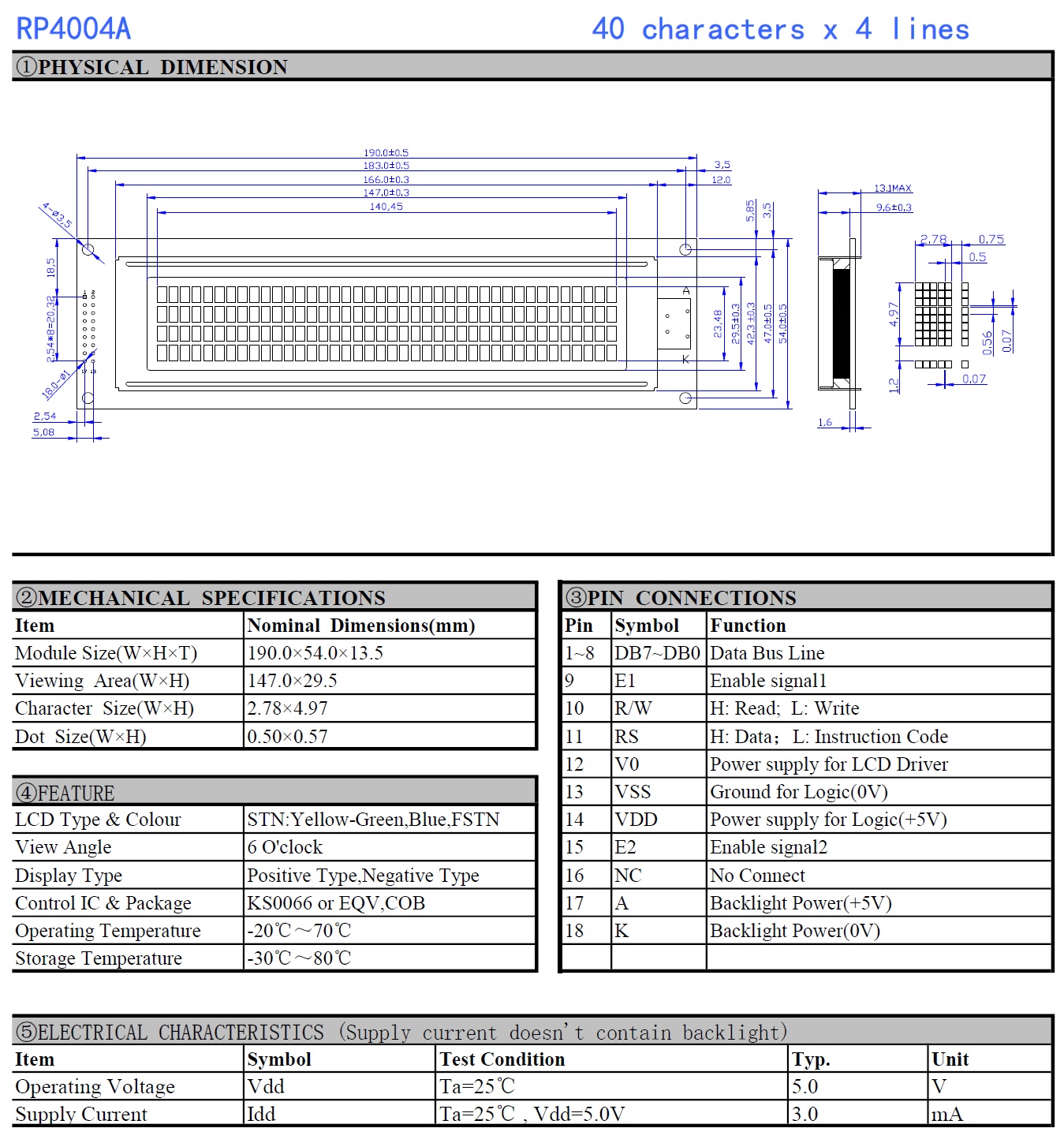

STN Type Display LCD 4004 40x4 Character LCD Module
Model: RP4004A
Dots: 40 x 4
LCM Type COB
Module Size 190 x 54 x 13.5mm
Viewing Area 147 x 29.5 mm
Character Size 2.78 x 4.97 mm
Dot Size(W*Hmm) 0.50 x 0.57 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type Positive/Negative
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
