TFT LCD Display

TFT LCD Screen 4.3inch 480*272 RGB 40pin optional touch screen

TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.
Description

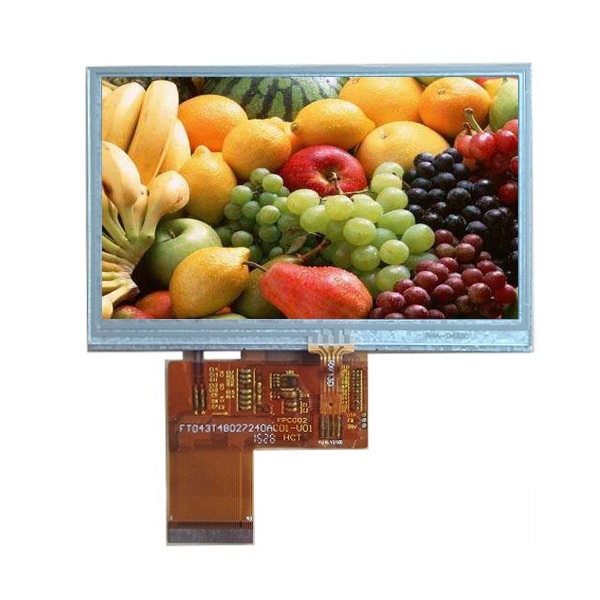

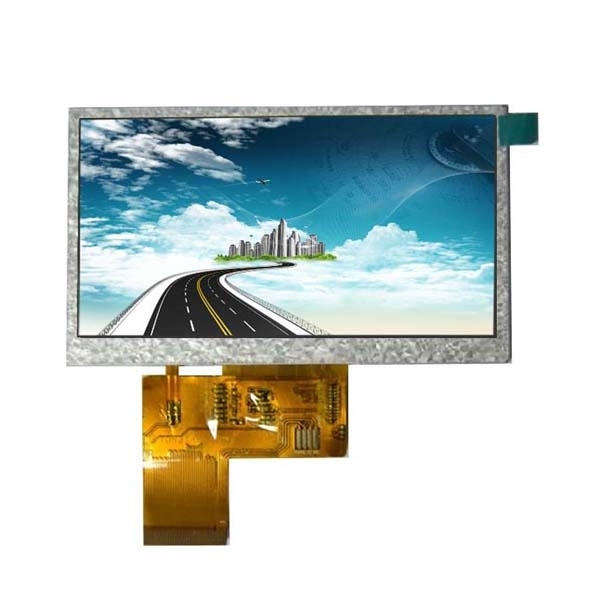

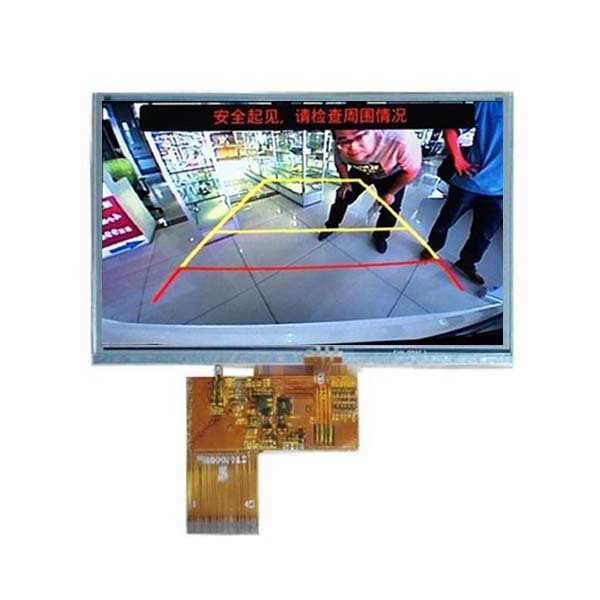

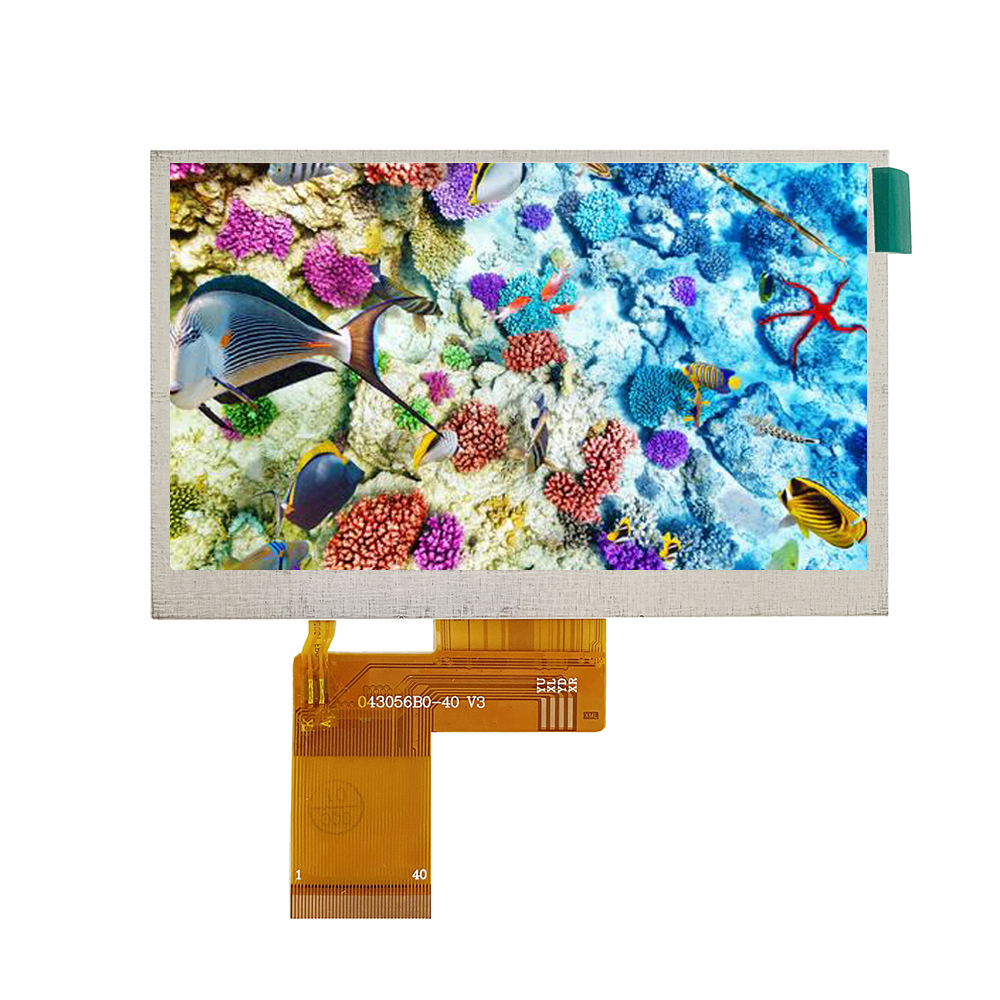

 TFT LCD Screen 4.3inch 480*272 RGB 40pin optional touch screen
Model: RPRP043145C0-40-N
Panel Size 4.3 inch
LCD Type TFT TRANSMISSIVE
Module Size 105.5(W)*67.2(H)*3.0(T) mm
Display Area 95.04*53.856 mm
Number of Dots 480×(RGB)×272 Dots
Best Viewing Direction 12 O’clock
Driver IC ILI6485
Display Type 262K
LED Numbers 7 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
