TFT LCD Display

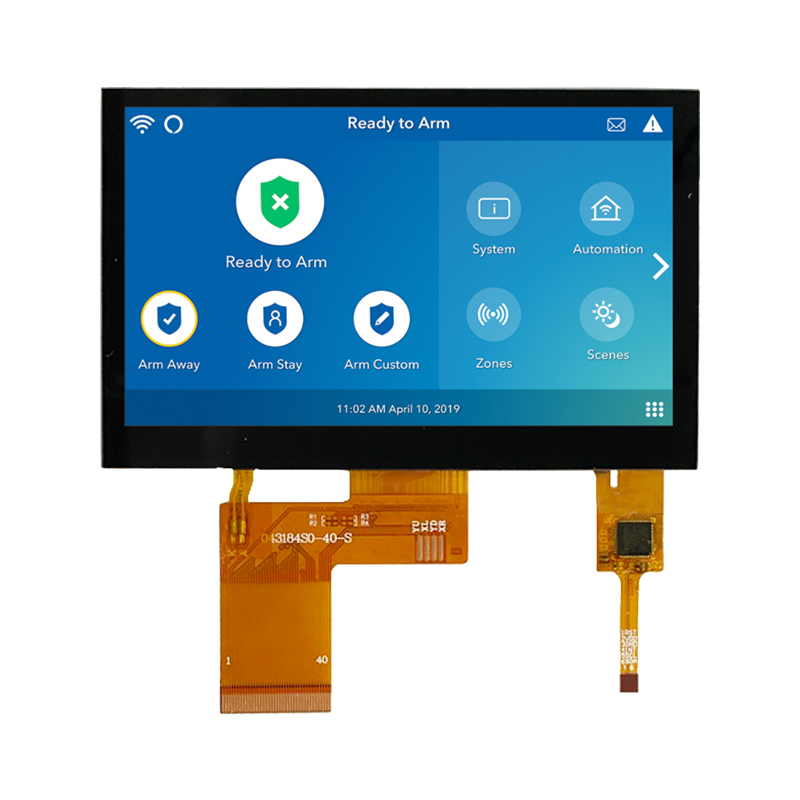

4.3inch capacitive touch screen IPS lcd display 800*480 RGB 40pin LCD display module

Item No.: RP043D40N07IPS-GG01
4.3inch TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.
Description
 4.3inch capacitive touch screen IPS lcd display 800*480 RGB 40pin LCD display module
Model: RP043D40N07IPS-GG01
Panel Size 4.3 inch
LCD Type TFT TRANSMISSIVE
Module Size 105.5(W)*67.2(H)*4.6(T) mm
Display Area 95.04*53.856 mm
Number of Dots 800×(RGB)×480Dots
Best Viewing Direction All
Display Type 16.7M
LED Numbers 12 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
